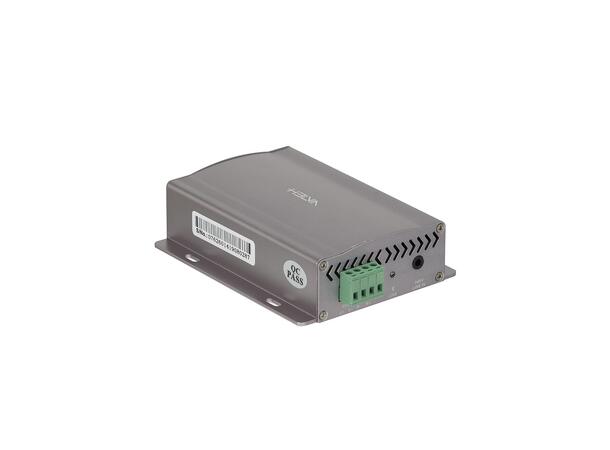

This power amplifier is designed for recessed wall mounting in all those small installations where music or other audio content is required, and a 70V or 100V line is not requested.
HCA-40 PLAY delivers 2x20W @ 4-16ohm in Class-D. This ensures high efficiency, low thermal dissipation and maximum stability.
BT connection makes this small amplifier the right product for hotels, shops, home and much more.
Specifications
| Rated Power |
2×25W |
| Maximum power |
2×40W |
| Frequency Response |
20Hz~20kHz |
| Harmonic Distortion |
<0.1% |
| S/N Ratio |
82dB |
| Static Power Consumption |
0.24W |
| Impedance |
4-16ohm |
| Input Level |
0dbV (0.775V) |
| Input Impedance |
>10kohm |
| BT Receiving Distance |
10m |
| BT Standard |
BT2.1+EDR |
| Operation Voltage |
100-240Vac / 50Hz |
| Unit Size (WxDxH) |
125×100×35 mm |
| Packing Size (WxDxH) |
135×110×45 mm |
| Net Weight |
0.35kg |
| Gross Weight |
0.33kg |
