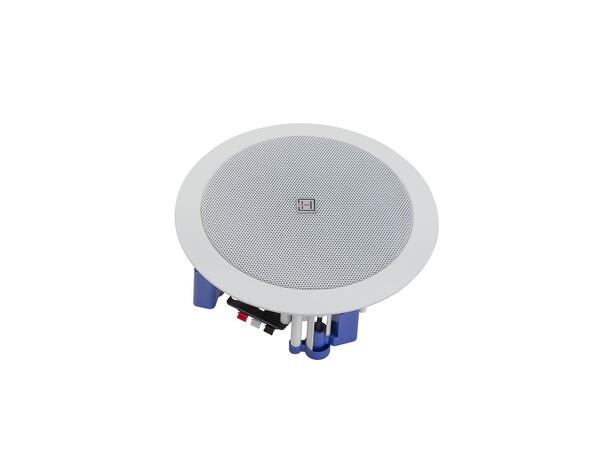

GALA X Series offers powerful and accurate coaxial loudspeakers with woofer diameters ranging from 5,25” to 8”, and powers from 20W to 40W RMS. They can be used with standard 70/100V professional amplifiers, and provide transparent and brilliant sound. They are therefore suitable for any application of music distribution at higher volume levels.

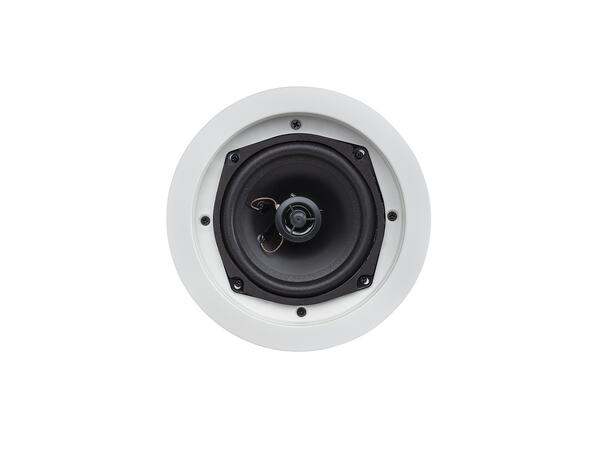

The housing of GALA X speakers is made of high quality ABS. They also feature 0.5” Mylar-dome tweeters, polypropylene enforced woofers, and aluminum removable grille, which make these speakers suitable for humid environments.

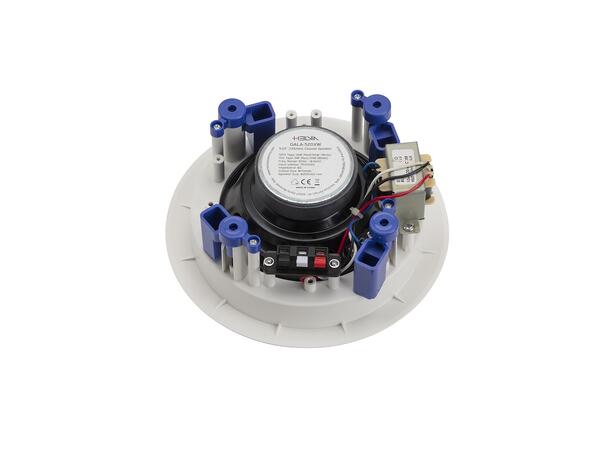

Installation is very easy, thanks to the quick mounting system with 4 screws. These screws are hidden behind the grill, and offer an elegant and minimalist design. The built-in line transformers allow the use with 70/100V lines, and offer two power taps to better adapt to different speaker arrangement and amplifier powers. They come in white color, but can be painted in any color.
Specifications
| Speaker Type |
2-Way Passive, Coaxial |
| Line Voltage |
70V/100V |
| Line Transformer |
Built-in, 2 power taps |
| 100V Power |
10W/20W |
| 70V Power |
5W/10W |
| Frequency Response (-10dB) |
80Hz-18.5kHz |
| Sensitivity (1w/1m) |
87dB |
| Woofer |
5.25” (135mm), PP cone |
| Tweeter |
0.5” (13mm), Mylar dome |
| Housing |
PP, paintable |
| IP Rate (speaker installed) |
IP54 |
| Mounting |
Quick mounting system with 4 screws |
| Grille |
Perforated steel with acoustic transparent foam inside, paintable |
| Color |
White |
| Cutout Size |
Ø 172 mm |
| Product Size (WxDxH) |
Ø 203 x 90 mm |
| Speaker Weight |
1.0 kg |
| Packing Size (WxDxH) |
205 x 95 x 205 mm |
| Packing Weight |
1,1 kg |
