JTS RU-8012DB/CM-214T SM Trådløst system

Dobbel mottager m/ 2x hodebøyle (small)

Varenr: RU8012SET-HBS-614-JT
5 996,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Frekvensbånd
506-542 MHz
506-542 MHz
520-556 MHz
520-556 MHz
614-650 MHz
614-650 MHz
638-674 MHz
638-674 MHz
2 på lager i Oslo
BeskrivelseTilbehørAlternativerLenker & dokumenter
Beskrivelse

Frekvensområde: 614-650MHz

Based on the successful experience of US-8002DB, the RU-8012DB is designed with JTS 2nd generation wireless technology. To cope with the squeezed radio spectrum, the system provides more compatible channels within limited bandwidth. The patent pending REMOSET sends the scanned channel data to transmitter by pushing a button. To meet critical audio demand general noise and hiss noise have been reduced to an extremely low level. 100 meter operation range meets most demand from most applications. To be environment friendly an integrated charger is available on option.

SPECIFICATIONS

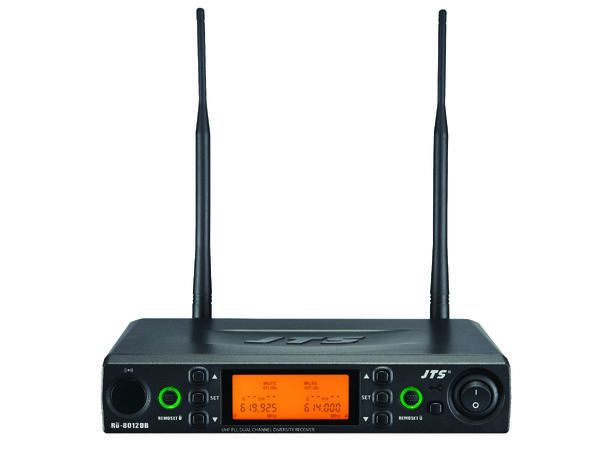

RU-8012DB
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 470~960 MHz
Frequency Setting Ultrasonic / REMOSET (Transmit)
Receiving Mode Antenna Diversity
Bandwidth 36MHz
S/N Ratio >105dB(A)
T.H.D <0.6%@1KHz
Sensitivity -95dBm,S/N>80dB
Rejection Ratio >80 dB
Frequency Response 50Hz~16KHz±2dB
Antenna Type BNC Socket
Antenna Booster Power DC12~15V/100mA
Display LCD
Display Contents Group, Channel, Frequency, Battery Level, Antenna A/B, Mute Display, AF Meter,
RF Meter, Frequency Scan, Audio Level, Volume
Controls Power ON/OFF, Group, Channel, Frequency, Mute Display, Key Lock, Volume, Output
Attenuaiton(XLR), Frequency Scan(ON/OFF)
Audio Output Level Ref/ ±22.5KHz Dev@1KHz Tone
?6.3 Phone Jack/ -10dBV
XLR Jack/ -4dBV(Line) ? -24dBV(MIC)
Audio Output Impedance 600O
Squelch Pilot Tone & Noise Mute

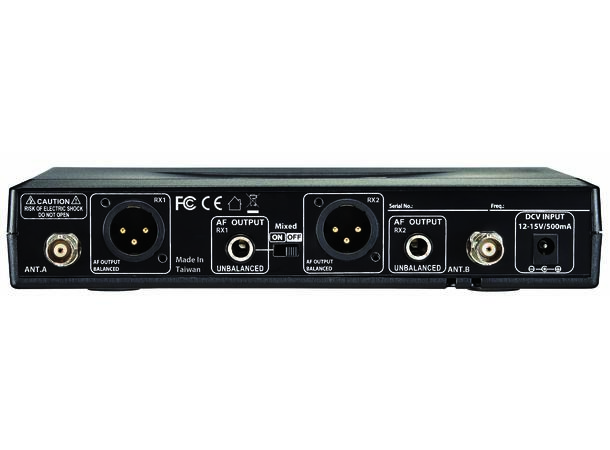

Output Connector 2 independent balanced XLR and 2 Ø6.3mm unbalanced.
Power Supply DC12~15V/500mA
Dimension (mm) 212.3mm(W)* 38.3mm(H)* 144mm(D)
Notes Acutal product specifications may vary depending on model and region

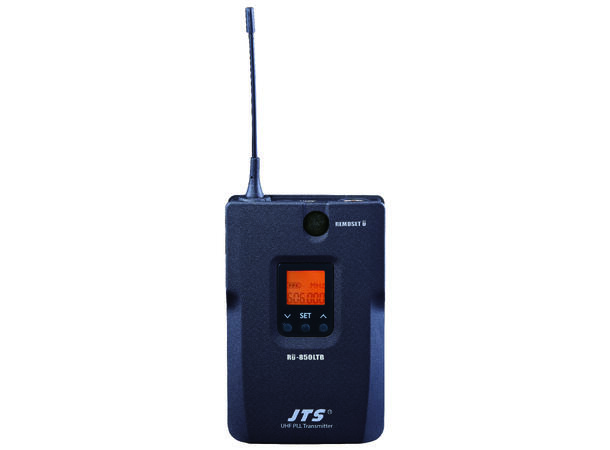

RU-850LTB
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 470~960MHz
Frequency Setting REMOSET U(Receive)
RF Outpus Low / High
Stability <±10KHz@Fc
Frequency Deviation ±48KHz
Spurious Emissions <-50dBc
Function Mute, Auto Power Off, Sensitivity Adjust, Low Battery
Display LCD+LED
Input Connector 4P Mini XR
Controls Power, Mute, Group, Channel,
Frequency, Gain Adjust, Auto Power Off, Key
Lock
Battery UM3, AA x2

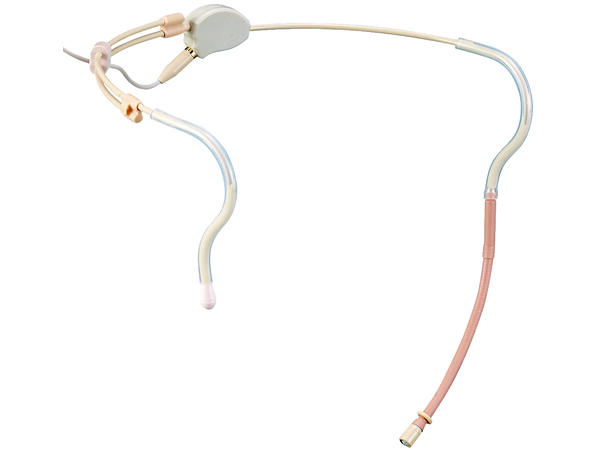

CM-214T Hodebøylemikrofon

Kondensator hodebøylemikrofon for live, teater og broadcast. Justerbar bøyle og utskiftbar kabel
Leveres med kabel for JTS/Shure systemer (TA4F)
Kabel for AKG (TA3F), Sennheiser (minjack) og Audio Technica (Hirose) kan kjøpes separat (se tilbehør)

• Karakteristikk: Omni.
• Frekvensrespons: 60-15.000Hz
• Farge: Beige
• Leveres med TA4F plugg for JTS trådløse sendere. Passer også andre merker, bla.Shure
