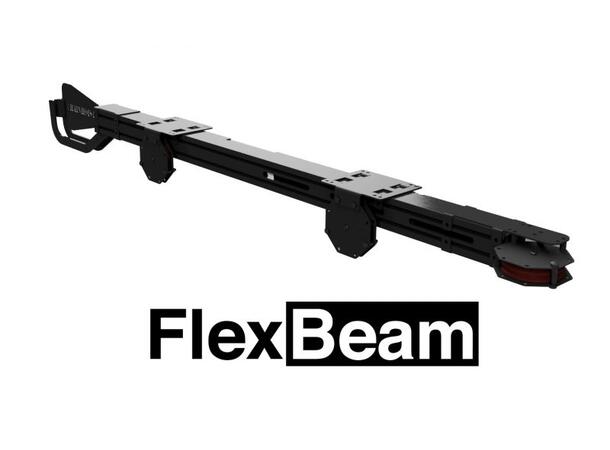

FlexBeam 250Kg, 12 meter, løfteh. 11,5m

14 meter bom. 5 x drop

Varenr: 500-214712-PR
46 236,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Bestillingsvare
BeskrivelseLenker & dokumenter
Beskrivelse

Innovative modular lifting system suitable for small to medium-sized projects
Designed to suit renovations without reinforcing the roof beams as the profile takes out all the side forces. The system is delivered in sections and can easily be lifted as such for quick installation. Wires run in a sound damped plastic track and provides minimal hanging wires. Built in and around an 100x100mm aluminum profile it requires minimal space. FlexBeam can be ordered in sections up to 6m and joint together during installation for custom length.

Aluminium profile W: 100mm x H: 100mm
Material: EN AW 6063 – T6
Available in sections up to 6 m
Self-weight: 6,2 kg/m + accessories
Matte black powder coated (custom colors on request)
Inspection slots on both sides with sidetracks for cabling
For up to 5 pieces of 6mm wires
All parts are integrated on the profile
Can be used with all types of chain hoists

Standard configuration

Integrated fixing clamps for 100-140 mm H-beam
Motor bracket adjusted for your chain hoist
Rope collector adjusted for your chain hoist
5 mm steelropes (6mm on 500214806)
Ball bearing pulleys in red nylon Ø125mm
Delivered w/ powder coated black steelpipe 50x3mm
Complete w/ joint connectors
