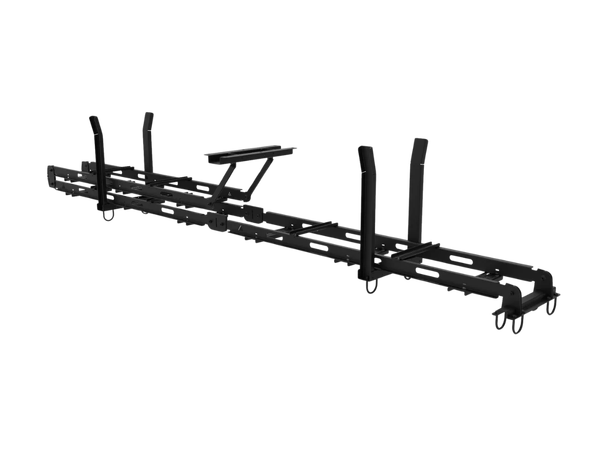

The L cable guide is ideal for high-demand installations that require managing a large number of cables. Thanks to its wider gutter of 108 mm, it can accommodate many cables at once, reducing the need for multiple cable guides. An XL version is also available, featuring gutters that are 220 mm wide.
To separate power and signal cables, the L guide can be fitted with a divider insert.
It can be installed on 30 truss using U-bolts (provided), or on 40 truss with a matching adapter (sold separately).
The L cable guide is designed to be flexible, lightweight and durable. Its sections are made of aluminium to keep the weight low, while the hinges are made of steel.
The centre hinge can bend up to 40 degrees for increased flexibility and the corner hinges can move up to 170 degrees. The corner hinges are also equipped with a reinforcement rod, which also serves as a guideline for how long the cables must be to reach full length. Additionally, the top hinge has length strips to minimize lateral movement of the truss and cable guide during use.
