NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER

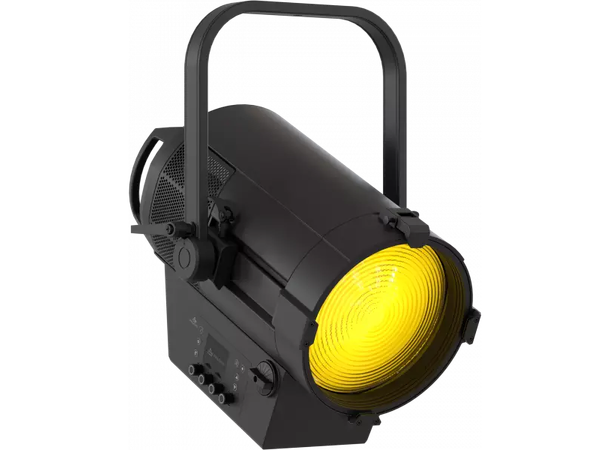

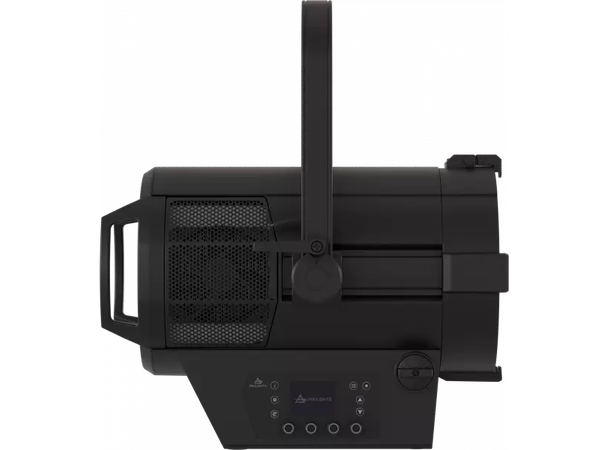

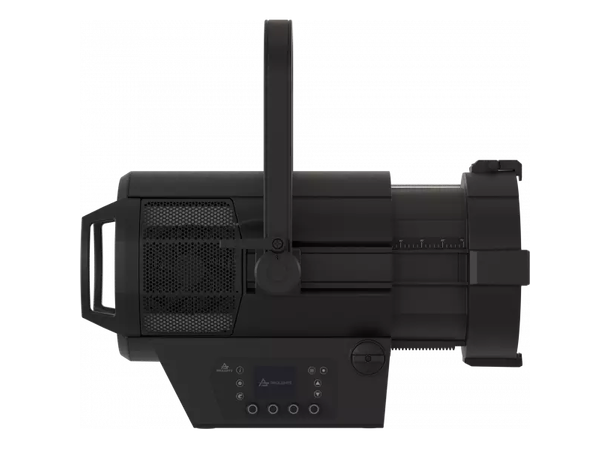

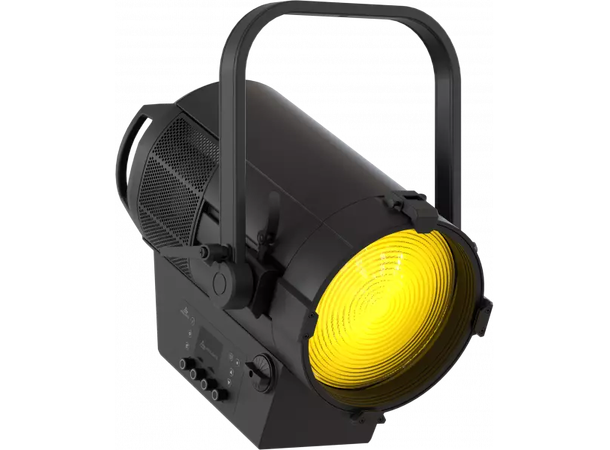

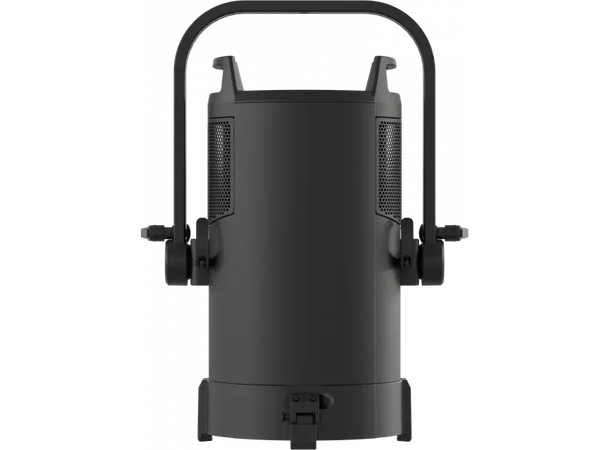

EclFresnel CT+M is a 350W LED Fresnel, engineered with a new 6 colours light source and a 200mm / 8'' glass Fresnel lens.
The newly designed optical system allows a greater zoom range from 9° to 80°, keeping and high efficiency also at a narrow beam angle.
The Spektra calibrated light source delivers consistency in operations, higher luminous flux in both colours and whites CCT keeping a broader color space and richer light spectrum to achieve unprecedented values of CRI, TLCI and TM30.
Fixtures of the EclFresnel CT+ range brings more power in their processing unit, offering an ultimate user experience in terms of control of the light and colours and as well more intuitive stand alone operations through a larger display, backlight encoders, and advanced connectivity both wired and wireless.

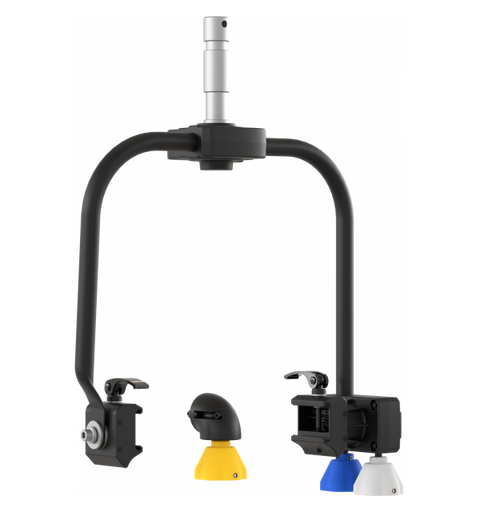

Completed by a wide range of accessories including 8 leaf barndoors and P.O. bracket, the EclFresnel CT+ also performs silent, allowing to be the indispensable workhorse for Broadcast, Film and Theatre applications.
Features:
- 350W 6 colour LED Fresnel with 200mm/8'' glass lens
- 9-80° Manual zoom system
- High quality CCT reproduction and advanced color control
- New UI with 2.8'' display and 4 backlit pushable encoder
LIGHT SOURCE
- Light source: Proprietary source manufactured in Europe by PROLIGHTS
- Source: 350W 6 colour LEDs source
- Luminous flux: (9,4°) 3'867 lm - (80,8°) 9'827lm @4.000 K
- Lux: (9,4°) 5'706 lx - (80,8°) 451lx @5m @4.000 K
- CRI: 97 @3.200K; 96,8 @5.600 K
- R9: 91,7 @3200K; 96,9 @5.600 K
- TLCI: 88 @3200K; 94 @5.600 K
- TM30 Rf: > 94 @3.200K; > 94 @5.600 K
- TM30 Rg: < 102 @3.200K; < 103 @5.600 K
- Source life expectancy: > 50.000 h
OPTICS- Zoom: 9,4° - 80,8° manual
- Lens diameter: 8'' / 200mm
- Lens type: Fresnel glass lens with AR coating
- : Glass Fresnel lens providing a classic light fall-off
- Additional optics: PC lens available as accessory

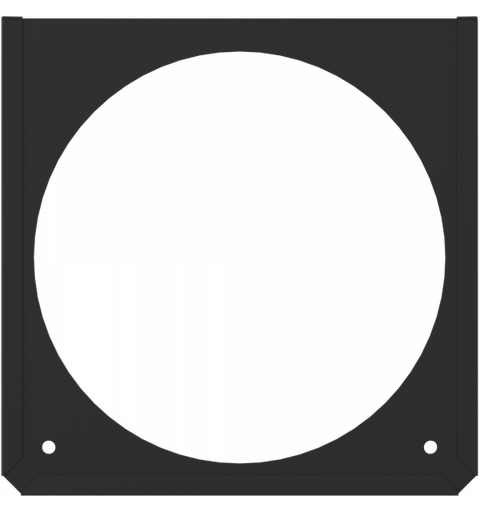

- Other: spigot, barndoor and gel frame included
COLOUR SYSTEM- Colour control: XY, CCT, RGBW, Gel with Source Emulation, Tungsten emulation, HSI, User preset
- Colour mixing: 6 colour LEDs source
- CCT: Linear CCT adjustment from 1.800 K-20.000K
BODY- : Sliding bracket for adjustable weight balance
- Hardware on-board: filter frame, 8 doors barndoor, spigot
- Body: Die-cast magnesium alloy
- Body colour: RAL 9004
- Other: Strengthened zoom movement system for enhanced durability and stability
CONTROL- Protocols: DMX512, RDM, CRMX
- Stand Alone: 4 pushable RGB backlit encoder

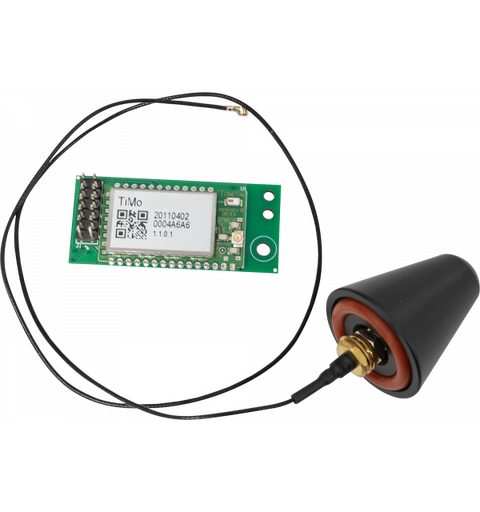

- Wireless Control: optional, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (Lumen Radio) and W-DMX (Wireless DMX), Bluetooth capable
- RDM: RDM for remote monitoring and settings
- Display: 2.8'' Color display
- Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO) not included
- Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1 - 30 Hz, electronic
- Operating temperature: -10° ~ +45°
- LED Control: flicker free frequency with adjustable PWM
- Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL- Mains power supply: 100-240V - 50/60Hz
- Low Voltage DC mains: 48V
- Max power consumption: 350W
- Output (at 230V): 8 units on a single power line
- Power factor: > 0,94
PHYSICAL- IP rating: 20
- Cooling: combination of heat pipe cooling system and low noise fan
- Signal connection: Amphenol XLR 5p IN/OUT connectors
- Data connection: WEIPU SF12 4P-F
- Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
- Low Voltage DC connector: XLR 3p for 48V
- Dimensions (WxHxD): 338x573x428mm
- Weight: 9,9kg
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, RCM, cTUVus
BOX CONTENT- 1 x ECLFRCTPM
- 1 x ECLFRSPG
- 1 x ECLFRCTPMFF
- 1 x ECLFRCTPMBD
- 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65)
- 1 x User Manual
