NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER

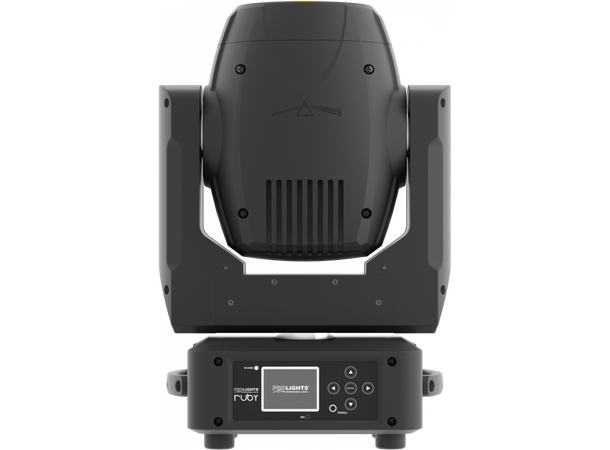

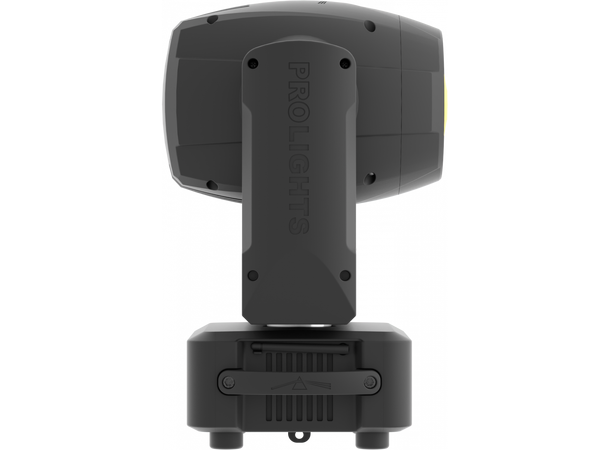

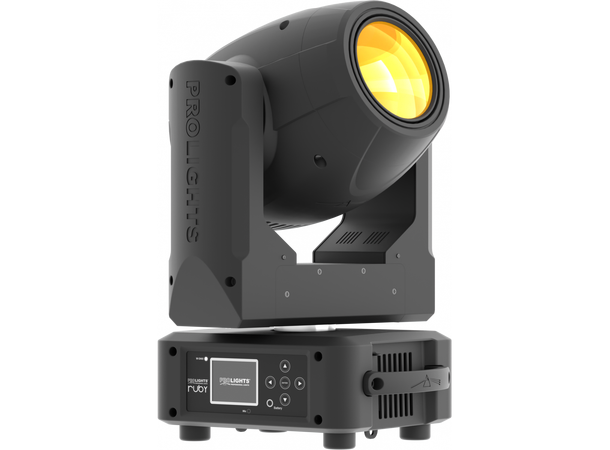

RUBY is a compact beam light that harnesses all the power of its Osram Sirius 132 W lamp into a tight, bright and sharp 2° beam. Designed to cut through even the brightest stage, the Ruby's clean and concentrated beam competes with much more powerful beam lights.

Features:
14 position colour wheel including CTC filters
Compact and lightweight design for creative freedom and easy rigging
Extensive effect options: frost, fixed gobo wheel and dual indexing with rotating prisms

LIGHT SOURCE
Source: 132W S Osram Sirius HRI
CCT: 9.200K
CRI: 60
Luminous flux: 5'150lm
Lux: 393'000lx @5 m
Source life expectancy: 6.000 h

OPTICS
Beam angle: 2°
Lens diameter: 98mm
Lens type: high-quality glass lens optics
Focus: motorised

COLOUR SYSTEM
CTC: on wheel 2.500 K and 3.200 K + CTB
Colour wheel: 14 colour filters
Macros: linear, half colours, colour bounce

DYNAMIC EFFECTS
Fixed gobos: 17 fixed gobos + open
FX generator:
Circular prism: 8f with bi-directional rotation, indexing
Linear prism: 6f with bi-directional rotation, indexing
Frost: frost unit to soften the beam edge

BODY
Pan angle: 630° - 540°
Tilt angle: 265°
Pan/Tilt resolution: bit 8 / 16 bit
Feedback: automatic repositioning after accidental movement
Body: aluminium structure with hi-resistance polycarbonate cover
Body colour: black, white finishing available

CONTROL
Protocols: DMX512, RDM
DMX channels: 11 / 13 / 14 / 17channel
W-DMX: optional, wireless solution receiver
RDM: RDM ready for fixture remote monitor and settings
Display: LCD high resolution colour display
Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included
Hibernation: power safe mode when lost DMX

ELECTRONICS
Dimmer: linear 0 ~ 100% mechanical dimmer
Strobe / shutter: 1 - 25 flash(s), mechanical
Battery backup: battery backup for user operation without connecting to the main power
Operating temperature: -10° ~ +45°

ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
Power consumption (at 230 V): 212W
Power consumption (at 120 V): 212W
Output (at 230 V): 8 units on a single power line

PHYSICAL
Cooling: forced air with low noise fan
Sospension and fixing: any position with quick-lock omega brackets

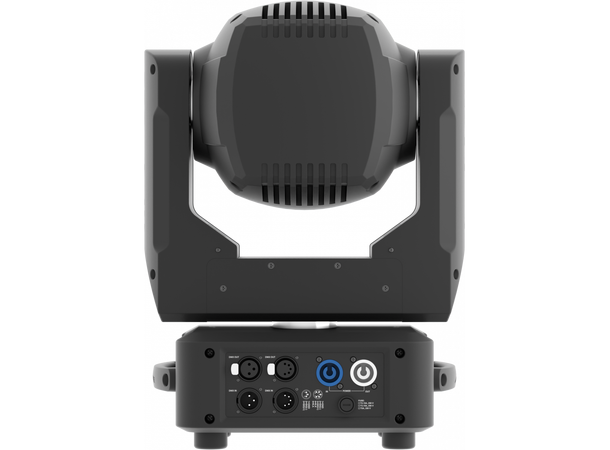

Signal connection: Amphenol XLR 3p + 5p IN/OUT connectors
Power connection: Neutrik powerCON IN/OUT connectors
IP rating: 20
Dimensions (WxHxD): 294x437x200mm
Weight: 10,5kg
