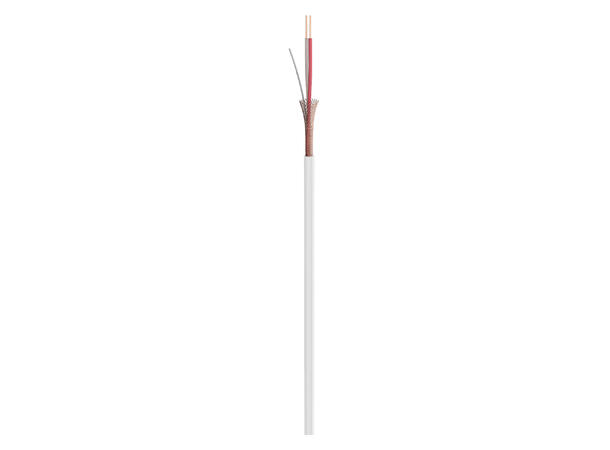

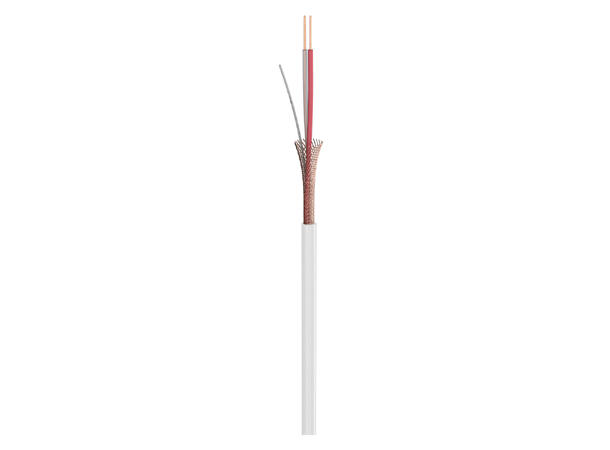

SOMMER Cicada SO-D14 Mikrofonkabel
2 x 0,14 mm², PUR, hvit, uten påskrift
20,-
This midget...
Advantages:
Highly flexible because of its fine single litz design
Easy to handle owing to the extra drain wire (0.22 mm²)
Superb shielding due to the tight helical mesh screen with 95 % coverage
Durable and notch-resistant due to the sturdy PUR jacket
Application:
Interior wiring of mixing consoles, racks, and other audio
components
Flexible cable for clip-on microphones, earphones, speaker units, etc.
Assembly of adapter cable
Specifications:
Article number
200-0450NE
Name
SC-Cicada SO-D14
EAN
4049371214346
Properties
Analog
Properties
PUR
Properties
OFC oxygen free copper
Application area
Installation
Application
Patch & Microphone Cable
Colour
white
Colour detailed
white, without imprint
Signal transmission
symmetrical
Construction
(2LI2Y0,14mm²)DY
Jacket material
PUR Master-Blend
Jacket Ø mm
2,60
Number of Channels (audio)
1
Inner conductor (audio)
2
Inner conductor (audio) mm²
0,14
Inner conductor Ø (audio) mm
0,42
AWG (audio)
26
Shielding
Copper spiral shielding + filler strand, tin-plated (0.22 mm²)
Shielding factor %
95
Copper strands (audio)
18
Copper strand Ø (audio) mm
0,10
Conductor insulation material
PE
Conductor insulation Ø mm
0,90
Weight per 1 m g
13
UV-resistant
yes
Fire load per m kWh
0,08
Style variant
round
Packing
100 m spool
Temperature min. °C
-30
Temperature max. °C
70
Width mm
2,6
Height mm
2,6
Capac. cond./cond. per 1 m (audio) pF
65
Capacity wire/wire at 1 ft. (audio) pF
19,812
Capac. cond./shield. per 1 m (audio) pF
120
Capacity wire/electic screen at 1 ft. (audio) pF
36,576
Insulation resist. per 1 km GO
1
Insulation resist. per 1000 feet GO
0,3048
Insulation resist. per 1 km (audio) GO
1
Insulation resist. per 1000 feet (audio) GO
0,3048
Conductor resistance per 1 km O
148
Conductor resistance per 1000 ft. O
45,1104
Shield. resistance per 1 km O
30
Shield. resistance per 1000 ft. O
9,144
BPVo-Euroclass
Fca
