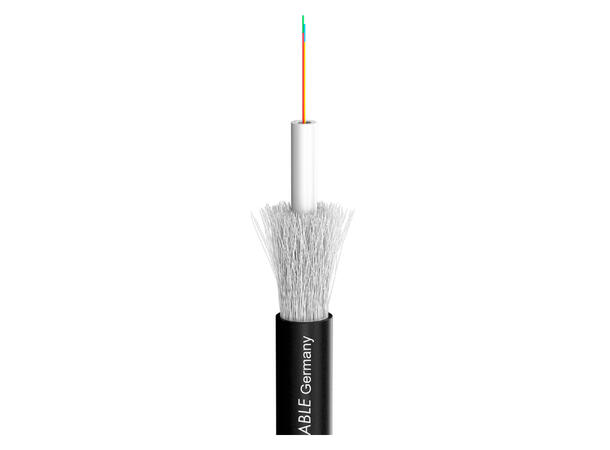

SOMMER Octopus-G Fiberkabel, OM4 8 x 50/125 µm OM4, FRNC / LSZH, sort SOMMER Octopus-G Fiberkabel, OM4 8 x 50/125 µm OM4, FRNC / LSZH, sort SOMMER Octopus-G Fiberkabel, OM4 8 x 50/125 µm OM4, FRNC / LSZH, sort

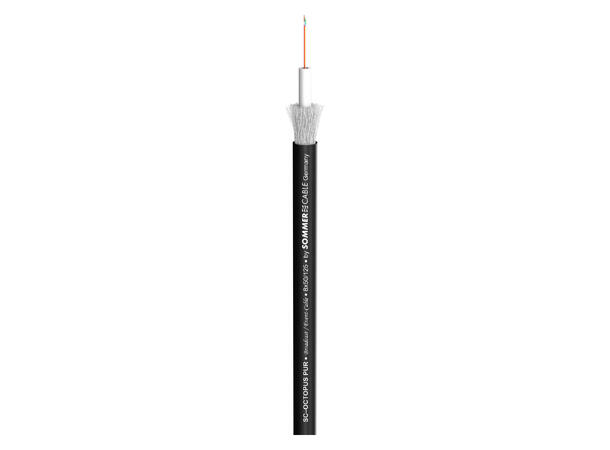

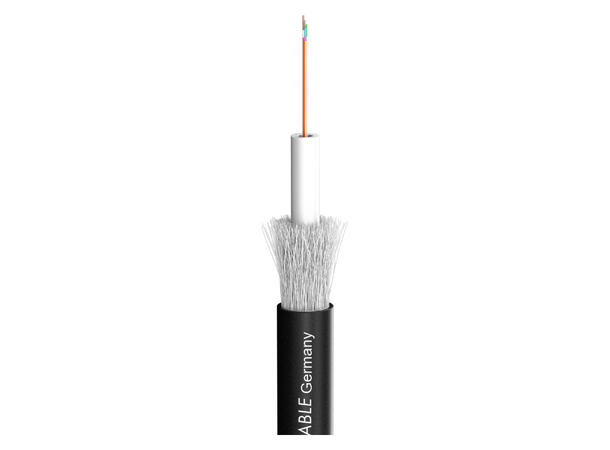

SOMMER Octopus-G Fiberkabel, OM4

8 x 50/125 µm OM4, FRNC / LSZH, sort

Varenr: 141450
Alt. varenr: 590-0511-08-OM4
71,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om å bli kunde her.
Ledere
Ytterkappe, materiale
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

WARP 1...

For permanent indoor and outdoor installations we recommend the UV-resistant FRNC/LSZH version.


Advantages:

  • Digital signal transmission over long distances
  • Compact, lightweight, robust and metal free
  • Die-electrical glass fibre armouring (rodent protection)
  • Longitudinal water-tight in compliance with IED 60794-1-F5
  • for 10G application

Application:

  • High-quality, fast connection for the transmission of digital signals
  • Powerful data network installation in complex buildings (e.g. from office buildings to airport facilities)
  • Indoor and outdoor transmissions with long transmission lengths


Specifications:

Article number590-0511-08-OM4
NameSC-Octopus-G
EAN4049371051163
Properties3G-SDI / UHD
PropertiesFRNC flame retardant
PropertiesHalogen-free / LSZH
Application areaInstallation
Application areaStudio / Broadcast
Application areaMobile outdoor / indoor
ApplicationOptical fiber
Colourblack
Colour detailedblack
ConstructionU-DQ(ZN)BH2Y
Jacket materialFRNC / LSZH
Jacket Ø mm7,00
Weight per 1 m g51
UV-resistantyes
Style variantround
Core (fiber) µm50
Cladding (fiber) µm125
Fibres8
QualityOM4
Temperature min. °C-10
Temperature max. °C50
Max. tensile force kN1,6
Width mm7
Height mm7
BPVo-EuroclassFca
