SOMMER Octopus-G Fiberkabel, OS2 4 x 9/125 µm OS2, PE, sort SOMMER Octopus-G Fiberkabel, OS2 4 x 9/125 µm OS2, PE, sort SOMMER Octopus-G Fiberkabel, OS2 4 x 9/125 µm OS2, PE, sort SOMMER Octopus-G Fiberkabel, OS2 4 x 9/125 µm OS2, PE, sort

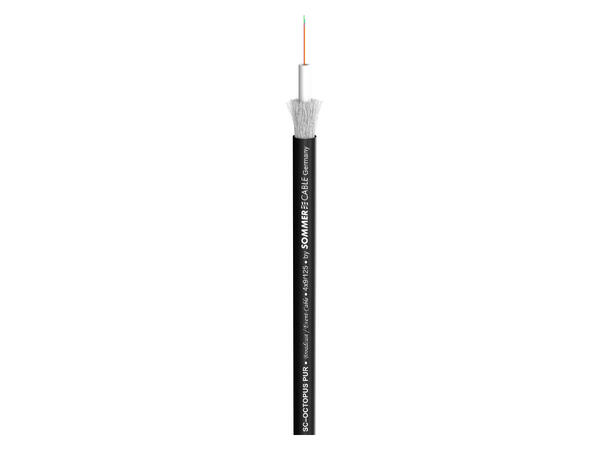

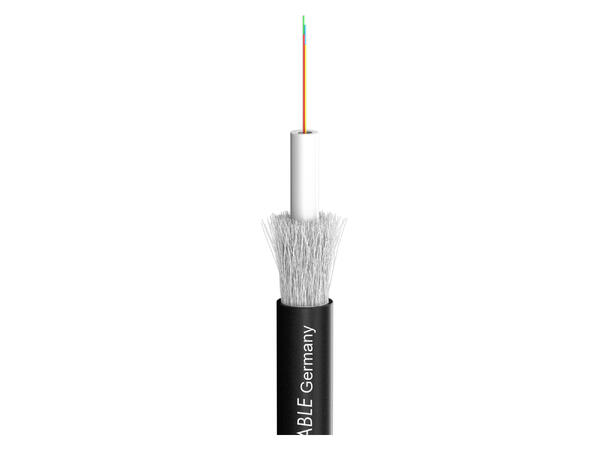

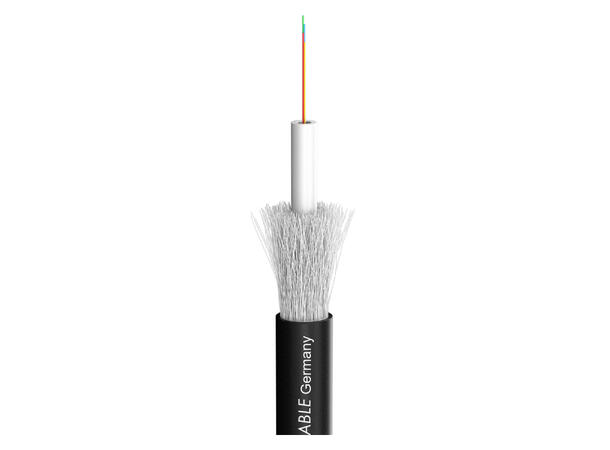

SOMMER Octopus-G Fiberkabel, OS2

4 x 9/125 µm OS2, PE, sort

Varenr: 141441
Alt. varenr: 590-0421-04
23,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om å bli kunde her.
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

WARP 1...

or to be more precise, you will be able to reach the simple speed of
light with our SC-Octopus-G LWL cable.
The superfine single-mode/monomode fibre with 9/125 µm is ideal for greater running lengths, especially for permanent installation. Data rates of 50 Gbit/s can be transmitted here without the need for a repeater. The light coupling and fibre connection is more delicate than with the multimode fibre, which is why the multimode standard is more frequently used for mobile applications.

The SC-OCTOPUS-G PE version is perfect for underground laying


Advantages:

  • Digital signal transmission over long distances
  • Compact, lightweight, robust and metal free
  • Die-electrical glass fibre armouring (rodent protection)
  • Longitudinal water-tight in compliance with IED 60794-1-F5

Application:

  • High-quality, fast connection for the transmission of digital signals
  • Powerful data network installation in complex buildings (e.g. from office buildings to airport facilities)
  • Indoor and outdoor transmissions with long transmission lengths


Specifications:

Article number590-0421-04
NameSC-Octopus-G
EAN4049371005616
PropertiesIn-ground / burial
Application areaInstallation
Application areaStudio / Broadcast
Application areaMobile outdoor / indoor
ApplicationOptical fiber
Colourblack
Colour detailedblack

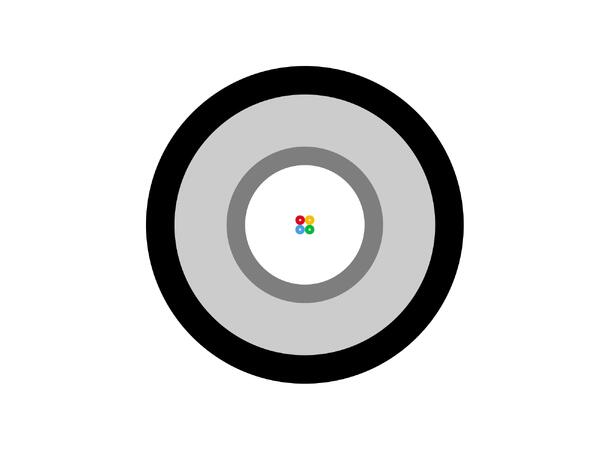

ConstructionA/I-DY(ZN)BH2Y
Jacket materialPE
Jacket Ø mm7,00
Weight per 1 m g51
UV-resistantyes
Style variantround
Core (fiber) µm9
Cladding (fiber) µm125
Fibres4
QualityOS2
Temperature min. °C-15
Temperature max. °C70
Max. tensile force kN1,6
Width mm7
Height mm7
BPVo-EuroclassFca
