NB: Selges kun i 100m ruller.
Where brute force reigns in a useful manner the sound people are at work and they will treat the cables not exactly squeamishly.

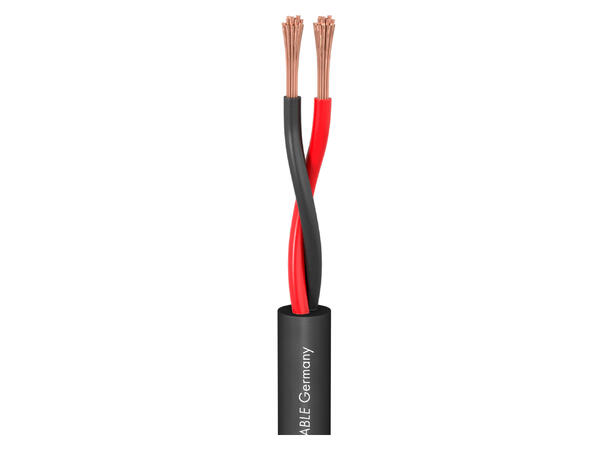

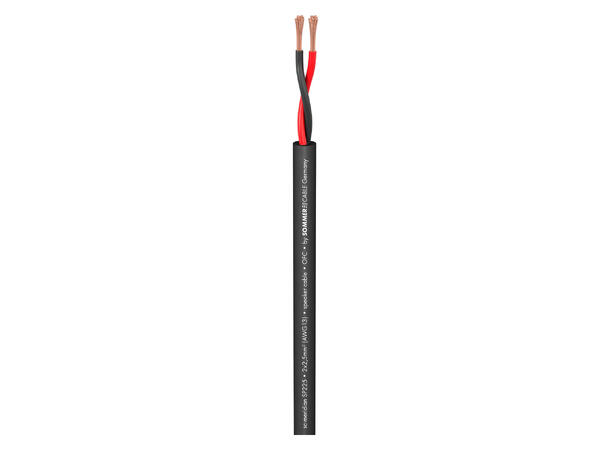

No problem for our robust Meridian Mobile SP215. This cable has been designed particularly for loudspeakers and here it meets all specific technical requirements. Low-oxygen Cu litz wires ensure better sound quality and a longer life. All PVC versions are easy to reel.
Advantages:
- flexible and easy to rollable for cable reel
- Small in diameter
- Very durable due to the use of special coating mixtures
- Affordable price
Application:
- PA sound systems of all kinds
- For ELA technology
- Cabling of HiFi systems
Specifications:
| Article number | 415-0051 |
|---|
| Name | Meridian Mobile SP215 |
|---|
| EAN | 4049371050937 |
|---|
| Properties | OFC oxygen free copper |
|---|
| Properties | Analog |
|---|
| Application area | Studio / Broadcast |
|---|
| Application area | Mobile outdoor / indoor |
|---|
| Application area | Stage / live |
|---|
| Application area | ELA 100 V |
|---|
| Application | Speaker Cable |
|---|
| Colour | black |
|---|
| Colour detailed | black |
|---|
| Construction | (2LIY1,50mm²)Y |
|---|
| Jacket material | PVC |
|---|
| Jacket Ø mm | 6,80 |
|---|
| Number of Channels (audio) | 1 |
|---|
| Inner conductor (audio) | 2 |
|---|
| Inner conductor (audio) mm² | 1,50 |
|---|
| Inner conductor Ø (audio) mm | 1,38 |
|---|
| AWG (audio) | 16 |
|---|
| Copper strands (audio) | 84 |
|---|
| Copper strand Ø (audio) mm | 0,15 |
|---|
| Conductor insulation Ø mm | 2,62 |
|---|
| Weight per 1 m g | 78 |
|---|
| UV-resistant | yes |
|---|
| Fire load per m kWh | 0,28 |
|---|
| Style variant | round |
|---|
| Packing | 500 m spool |
|---|
| Packing | 100 m spool |
|---|
| Temperature min. °C | -30 |
|---|
| Temperature max. °C | 70 |
|---|
| Width mm | 6,8 |
|---|
| Height mm | 6,8 |
|---|
| Capac. cond./cond. per 1 m (audio) pF | 150 |
|---|
| Capacity wire/wire at 1 ft. (audio) pF | 45,72 |
|---|
| Insulation resist. per 1 km GO | 0,005 |
|---|
| Insulation resist. per 1000 feet GO | 0,0015 |
|---|
| Insulation resist. per 1 km (audio) GO | 0,005 |
|---|
| Insulation resist. per 1000 feet (audio) GO | 0,0015 |
|---|
| Conductor resistance per 1 km O | 13 |
|---|
| Conductor resistance per 1000 ft. O | 3,9624 |
|---|
| BPVo-Euroclass | Fca |
|---|
