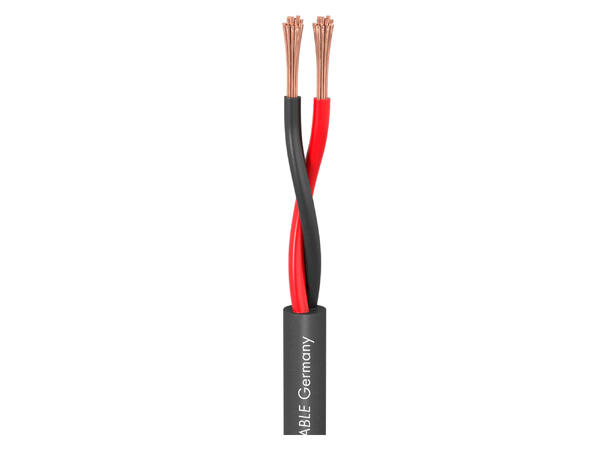

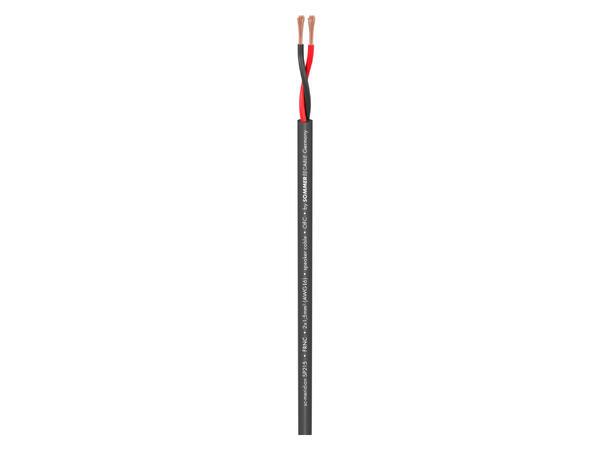

SOMMER Meridian I SP225 CPR Høyt.kabel 2 x 2,50 mm², FRNC Ø 8,20 mm, sort, Cca SOMMER Meridian I SP225 CPR Høyt.kabel 2 x 2,50 mm², FRNC Ø 8,20 mm, sort, Cca

SOMMER Meridian I SP225 CPR Høyt.kabel

2 x 2,50 mm², FRNC Ø 8,20 mm, sort, Cca

Varenr: 141658
Alt. varenr: 425-0051FC
72,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om å bli kunde her.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
  • 100m
  • 500m
100 på lager i Oslo

Where brute force reigns in a useful manner...

the sound people are at work and they will treat the cables not exactly squeamishly. No problem for our robust Meridian Install SP225 CPR-Version. This cable has been designed particularly for loudspeakers and here it meets all specific technical requirements. Low-oxygen Cu litz wires ensure better sound quality and a longer life.
FRNC (IEC 228, IEC 332-/1, IEC 332-3 Cat C, IEC 60331, IEC 61034-1/2, IEC 60754-2)


Advantages:

  • Small in diameter
  • Very durable due to the use of special coating mixtures
  • Affordable price

Application:

  • PA sound systems of all kinds
  • For fixed installation
  • For ELA technology
  • Cabling of HiFi systems


Specifications:

NameMeridian Install SP225 CPR-Version
EAN4049371375320
PropertiesFRNC flame retardant
PropertiesOFC oxygen free copper
PropertiesAnalog
PropertiesHalogen-free / LSZH
Application areaInstallation
Application areaELA 100 V
Application areaStudio / Broadcast
ApplicationSpeaker Cable
ApplicationInstallation cable
Colourblack
Colour detailedblack
Construction(2LIY2,5mm²)Y
Jacket materialFRNC
Jacket Ø mm8,20
Number of Channels (audio)1
Inner conductor (audio)2
Inner conductor (audio) mm²2,50
Inner conductor Ø (audio) mm1,78
AWG (audio)13
Copper strands (audio)50
Copper strand Ø (audio) mm0,25
Conductor insulation Ø mm3,05
UV-resistantyes
Fire load per m kWh0,38
Style variantround
Packing100 m spool
Packing500 m spool
Temperature min. °C-30
Temperature max. °C70
Width mm8,2
Height mm8,2
Capac. cond./cond. per 1 m (audio) pF136
Capacity wire/wire at 1 ft. (audio) pF41,4528
Insulation resist. per 1 km GO0,005
Insulation resist. per 1000 feet GO0,0015
Insulation resist. per 1 km (audio) GO0,005
Insulation resist. per 1000 feet (audio) GO0,0015
Conductor resistance per 1 km O7,5
Conductor resistance per 1000 ft. O2,286
BPVo-EuroclassCca
