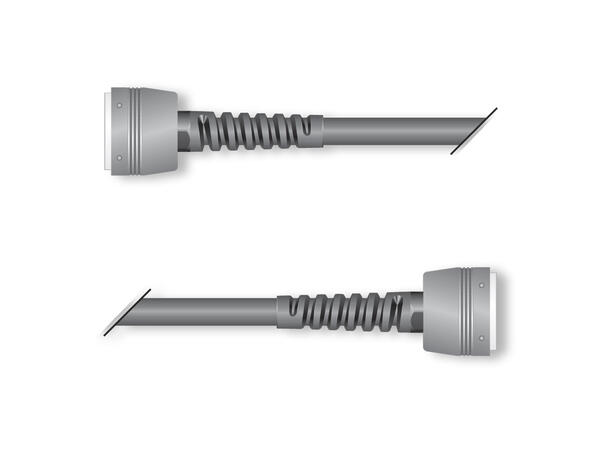

SC-ATRIUM FLEX
We deliver our robust and sturdy SC-ATRIUM Flex cable family (flexible inner construction pursuant to VDE 0295/class 5) finished with dependable ILME rectangular connectors (compatible with Harting HAN E series) or now also with HI-SOCA19 round connectors (compatible with Socapex 419). As sleeve support and for optimal strain relief we use high-quality spiral sleeve support screw joints. For an easy extension of the load multicores we offer the SPY-MB... extension adapters.
Please note that with lighting and load applications all relevant VDE provisions and common accident prevention regulations must be observed.
Configuration:
5,00 m Load multicore SC-Atrium Flex; 13 x 1,50 mm²; PVC, Ø 13,80 mm; black (700-0051-1315)
1 x ILME rectangle MP 16, 16-pol , Socket insert screwed contacts, grey (CNEF16T)
1 x ILME rectangle MP 16, metal-, Sleeve housing, 4 bolts, grey (CAV16.21)
1 x Sommer cable Protective Bag for all MP, straight output, subsequent assembly, grey (BAG-CAV-O)
1 x ILME rectangle MP 16, 16-pol , Pin insert screwed contacts, grey (CNEM16T)
1 x ILME rectangle MP 16, metal-, Sleeve housing, 4 bolts, grey (CAV16.21)
1 x Sommer cable Protective Bag for all MP, straight output, subsequent assembly, grey (BAG-CAV-O)
Specifications:
| Length ft | 16,4 |
|---|
| Article number | ATY9-131-0500-SW |
|---|
| EAN | 4049371112499 |
|---|
| Colour | black |
|---|
| Length m | 5 |
|---|
| Brand | Sommer cable |
|---|
| Application | Power Distribution Systems |
|---|
| Inner conductor | 13 |
|---|
| Inner conductor mm² | 1,50 |
|---|
| AWG | 15 |
|---|
| Connector-Brand | ILME |
|---|
| Cable | SC-Atrium Flex |
|---|
| Cable | 13 x 1,5 mm² |
|---|
| Type | multipin |
|---|
| Type (detailed) | Multipin 1 x 16-pole male |
|---|
| Type (detailed) | Multipin 1 x 16-pole female |
|---|
