The robust LAN connection for mobile applications. For the cable we use the PUR
version of our SC-MERCATOR CAT.7. The HIROSE RJ45 connectors are protected by the NEUTRIK EtherCon NE8MC1.

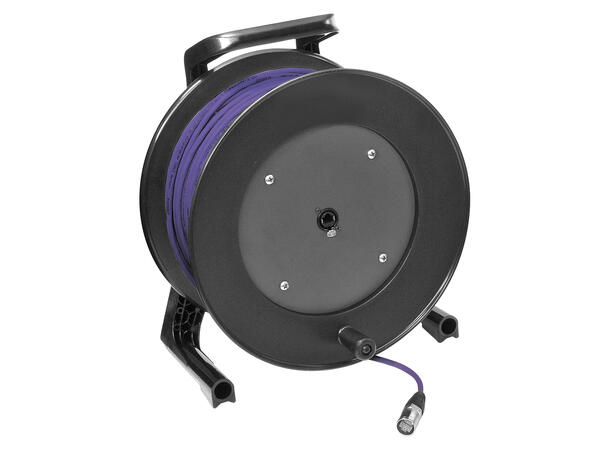

We deliver a very easy and robust SCHILL cable reel GT310. The reel is assembled by a RJ45 Mountingsocket in a frontplate.
Miscellaneous:
- Version: 1:1
- For Ethersound Applications > 100m and for Ethernet applications > 85m we recommend the CAT.7 PUR XL.
Configuration:
70,00 m SC-Mercator CAT.7 PUR; PUR; grey, Ø 6,50 mm (581-0076)
1 x SCHILL Kabeltrommel, GT310, core: 170 mm, thread width: 132 mm, Solid rubber (GT310)
1 x NE8FDV-YK-D
1 x Sommer cable Front panel with 1 D-hole (XLR, etc.) for GT310, HT and SK-Modelle, anthracite RAL7016 (RUND01)
1 x HIROSE RJ45 CAT.6a, 8-pole , plastic-, crimp-male connector, gold plated contact(s), straight black (RJ45C6A-SW)
1 x NE8MC1-D
Specifications:
| Length ft | 229,66 |
|---|
| Article number | P7NDG7000-GR |
|---|
| EAN | 4049371083263 |
|---|
| Colour | grey |
|---|
| Length m | 70 |
|---|
| Article number | P7NDG |
|---|
| Name | SC-Mercator CAT.7 PUR |
|---|
| Brand | Sommer cable |
|---|
| Application | network cable |
|---|
| Inner conductor | 8 |
|---|
| Inner conductor mm² | 0,14 |
|---|
| Connector-Brand | HIROSE |
|---|
| Connector-Brand | NEUTRIK |
|---|
| Additional function | on cable spool |
|---|
| Type | RJ45 |
|---|
| Type (detailed) | NE8FD |
|---|
| Type (detailed) | NE8MC1 |
|---|
| Type (detailed) | RJ45 male |
|---|
