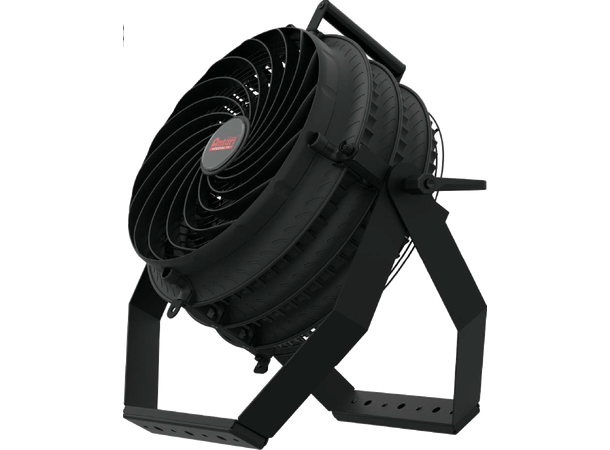

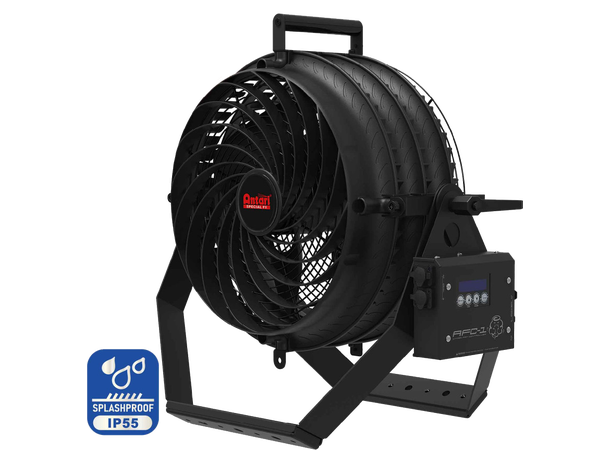

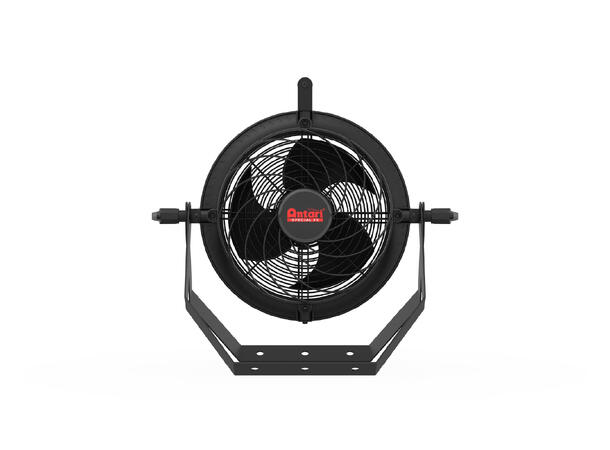

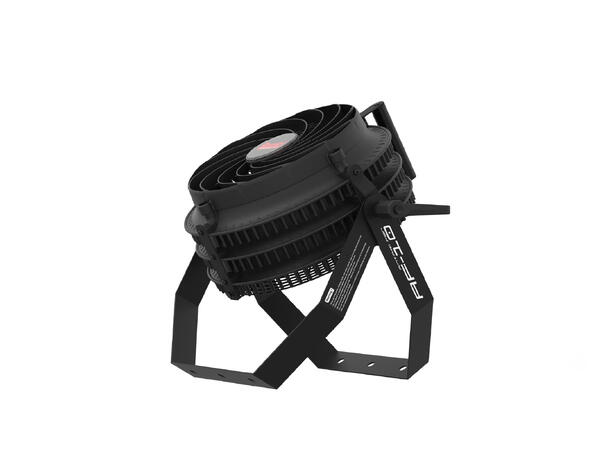

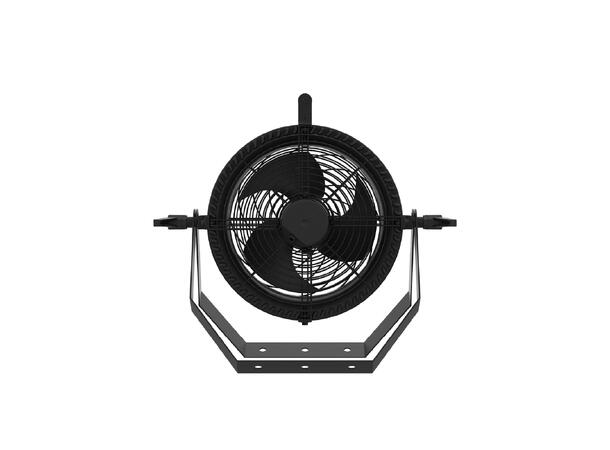

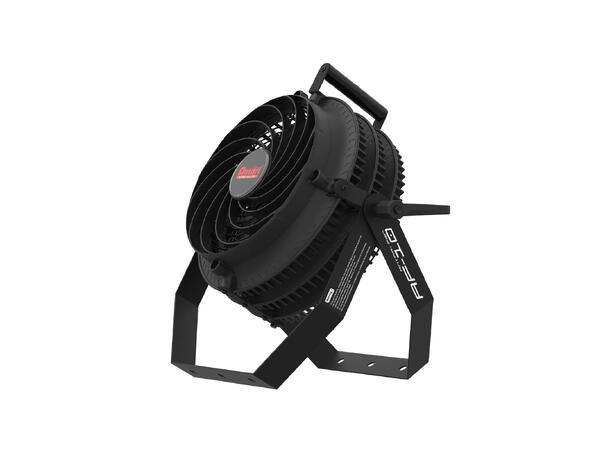

The Antari AF-14 is a high-velocity fan engineered for professional applications, combining power, precision, and long-term durability. Its IP-55 rated, splash-resistant construction makes it a reliable choice for demanding environments where moisture, dust, or outdoor conditions are a concern — a major advantage for touring, stage productions, and permanent installations.
Featuring a unique swirl-shaped front cover, the AF-14 maintains focused airflow while reducing turbulence and noise. The specially designed aerodynamic blades deliver optimal air distribution with minimal sound, ensuring smooth and quiet performance ideal for stage, studio, and installation use.
Built with robust materials for consistent reliability, the AF-14 operates with a simple plug-and-run setup or can be integrated with an optional control box for remote operation. Whether for fog dispersion or wind effects, the AF-14 provides efficient, quiet, and stable airflow that meets the needs of professional environments.
FEATURE
High-Velocity Airflow
Swirl-Shaped Front Cover
Low Noise Operation
Robust Constrcution
IP55 Rated Motor
SPECIFICATION
Input Voltage EU Model : AC 220 – 240V, 50 / 60 Hz 1A
Rated Power 240V 145W
Ambient Temp. Range 0°C – 40°C (32°F – 104°F)
Air Flow 2648 CFM
Fan Speed 1650±40RPM
Noise Level 59.0 dB (Max. Output)
Control Methods Manual
Timer
DMX512
Wireless (Optional)
Wireless DMX (Optional)
DMX Channels 1 Channel
Interface SEETRONIC IP65 Connector (Power)
SEETRONIC IP65 XLR 5-Pin Connector (DMX)
Included Accessories Dual Use Bracket

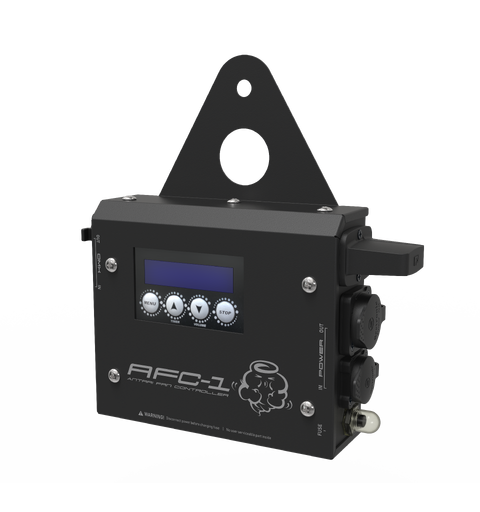

AFC-1 Fan Control
Optional Accessories WTR-110 Wireless Module
ES-W-DMX Wireless DMX
Dimension L432 W656 H623 mm
L17.00 W25.83 H24.53 inch
Weight 14.8 kg
32.63 lbs
