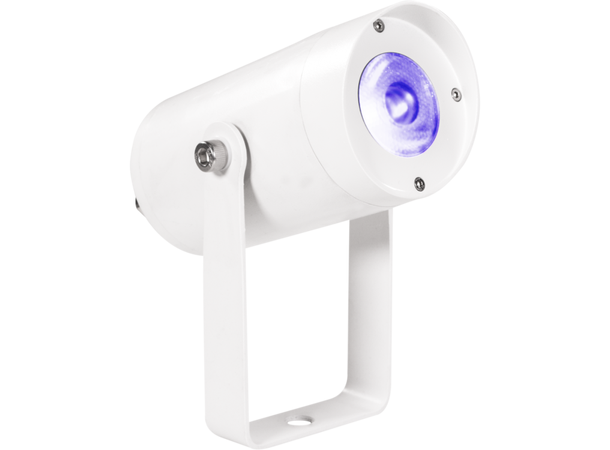

ARCPOINT1 is a LED projector, especially designed for outdoor lighting project.
The high-efficiency CREE RGBW/FullColor 13W LED source allows great luminous performances and keeping a low energy consumption even for large-scale installations. The special design (IP65) and the innovative RDM control technology, makes ARCPOINT1 suitable for all weather condition. Comes with a ground spike for fixing in the ground, that makes ARCPOINT1 ideal for applications in urban parks and gardens.

Light source and optics

• 1x10W high-efficiency CREE RGBW/FullColour LED

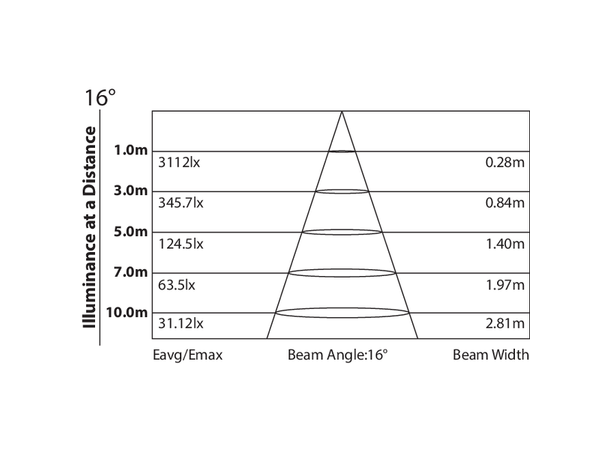

• Lux @ 3m: 345,7
• Energy-saving LEDs employed, with more vivid colors and lower power consumption than traditional lamps
• Color synthesis: RGBW/FullColor mixing for tones, temperature and saturation control
• White temperature presets: 3200K~10000K
• Beam Angle: 16°
• Field angle: 26°
• LEDs average life span: > 50.000 hours

Electronics and features

• Addressing and DMX mode change by RDM protocol
• Several DMX selectable configurations (4, 6, 10 channels) for advanced or basic controlling:

4 channels: RGBW
6 channels: dimmer, RGBW, strobe
10 channels: dimmer, RGBW, strobe, color macro, auto programs, auto speed, dimmer mode

• 4 different dimming curves available
• Auto mode: built-in programs with execution speed adjustment
• Manual color mode: manual adjustment of color
• Static color mode: selection of static color
• Master/Slave mode for stand-alone operations of more units
• Linear and “stepless” transition between DMX values
• Flicker free operations (400Hz)
• Silent operations, due to the natural cooling of the peculiar chassis and to absence of fans

Structure and power supply

• Sturdy die-cast aluminium body conceived for long-time durability and demanding applications
• Internal protection: IP65
• Ground spike for fixing in the ground
• Power unit: 100-240V 50/60Hz
• Max power consumption: 13W
• Weight: 1,2 kg

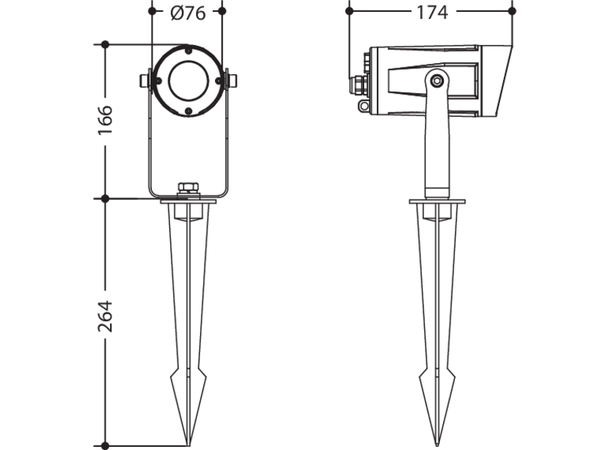

• Dimensions (WxHxD): 104x166x174 mm
