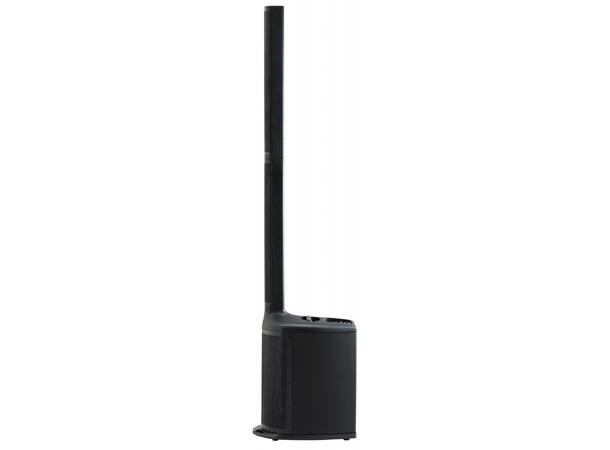

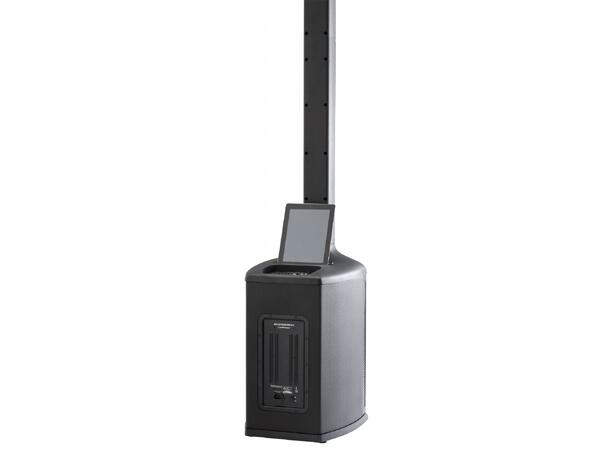

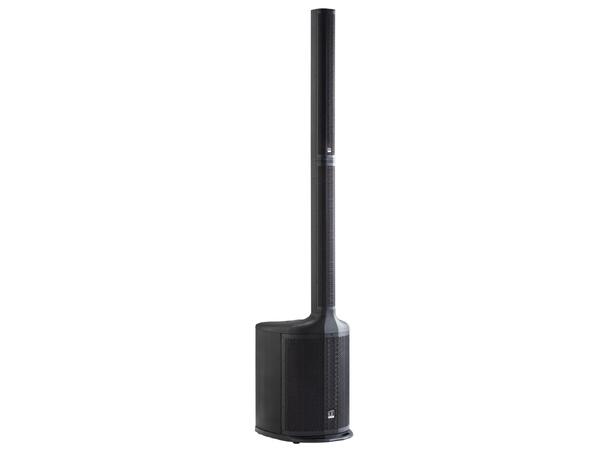

Active subwoofer and column system with mixer and 1 TWS Bluetooth® input

Integrated DSP
Stereo thanks to Bluetooth TWS technology
Supplied with covers for the columns and the subwoofer

Technical data

Column

• Power 180W RMS - 360W max

• Nominal impedance 6 Ohms

• Boomer 6 X 3"

• Tweeter 1 x 1"

• Dispersion : 120° x 30° (HxV)

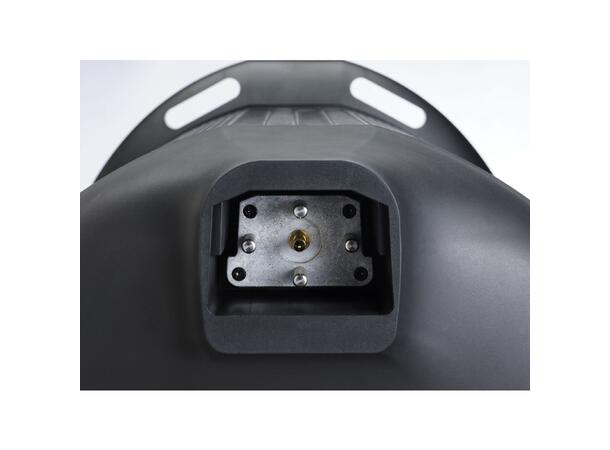

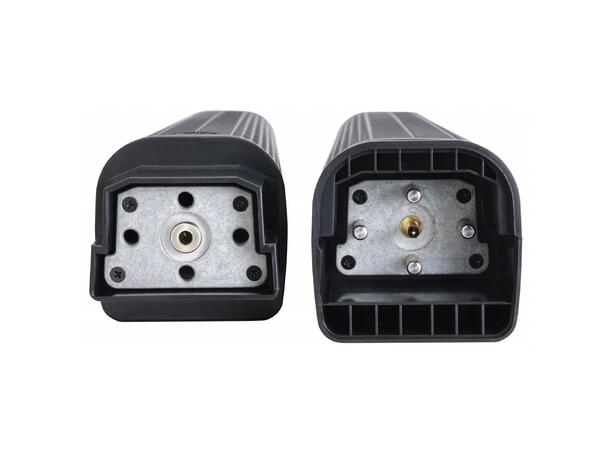

• Connector : Slot-in inegrated into the subwoofer

• Dimensions : 103 x 750 x 100 mm x 2

• Net weight : Column: 3.75 Kg / Spacer: 2.1 Kg

Subwoofer

• Power : 250W RMS - 500W max

• Nominal impedance : 4 Ohms

• Boomer : 1 x 10"

• Dimensions : 389 x 626 x 626 mm

• Net weight : 21.8 kg

Complete system

• Frequency response : 38Hz -18KHz

• Max. SPL (@1m) : 122 dB

Amplififer module

• Low frequencies 1 x 300W RMS / 600W Max

• Mid/High frequencies 1 x 300W RMS / 600W Max

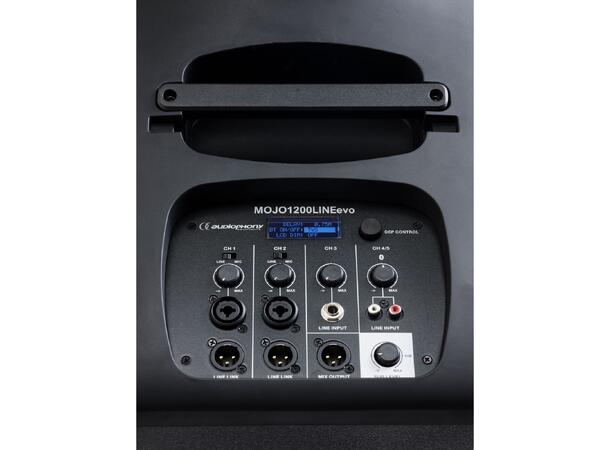

• Inputs

 - CH1 : 1 x Combo XLR/Jack Ligne/Micro

 - CH2 : 1 x Combo XLR/Jack Ligne/Micro

 - CH3 : 1 x Jack Ligne

 - CH3 : 1 x RCA L/R ligne + Bluetooth®

• Outputs

1 Slot-in on the top of the subwoofer for the column

1 x XLR balanced MIX OUT for the link with another system

2 x XLR balanced LINE OUT for the channel 1 and 2 link

• DSP

 - 24 bit (1 in 2 out)

 - EQ / Presets / Low cut / Delay / Bluetooth® TWS

• Level : Volume settings for each way + Master

• Sub Subwoofer volume settings
