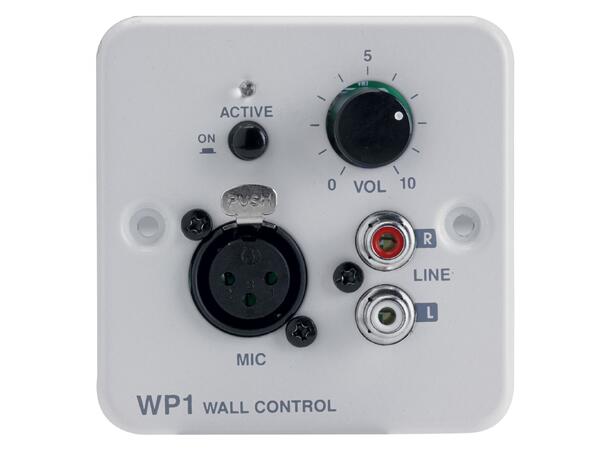

Wall-mounted controller for ZONEAMP4120 or PREZONE444
Allows you to either connect a microphone or external player to the selected channel
Direct access to volume controls on the controller
Controller powered up by the amplifier via RJ45

 1 XLR Mic input (front)
• 1 RCA Line input (front)
• 1 RJ45 output (rear)
• Volume settings at the front
• ON/OFF Switch
• LED VU meter
• 15V, DC power supply via RJ45 cable from your ZONEAMP4120 or PREZONE444
• Operating range between WP-1 et the zone mixer: 200 metres with category 6 cable.
• Frequency response: 20 Hz - 20 kHz
• T.H.D (1 kHz nominal power): < 0.1%
• Dimensions: 80 x 80 x 50 mm
• Weight: 0.2kg
