4x120W amplifiers at 100V
Compact and light design

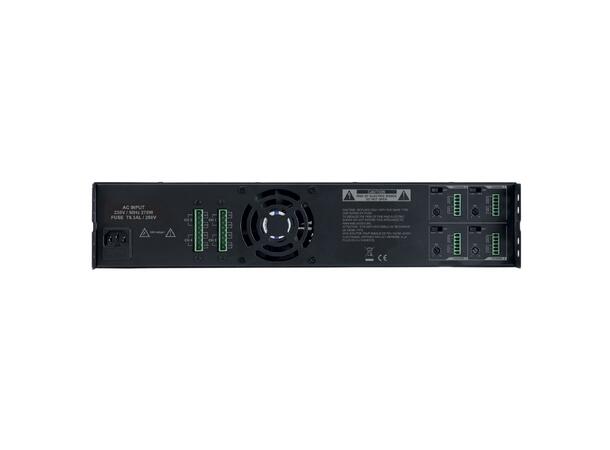

Technician settings at the rear

• 4 Mono inputs via Phoenix plugs
• 4 Speaker outputs at 100V via Phoenix plug
• 4 Line-level link output via Phoenix plug
• Volume settings for each channel
• Flat/HPF Switch for each channel
• Output display for each channel via 4-LED VU meter
• Screwdriver required to access technician-level settings
• Power supply: 230 V 50/60 Hz
• Frequency response: 50 Hz - 15 kHz
• T.H.D (1 kHz nominal power): 0.1%
• Dimensions: 380 x 088 x 482 mm
• 19?? mount-rackable
• Height: 2 units
• Weight: 7.2kg
