RDM compatible DMX splitter: splits mains power and DMX input into 2 optically separate outputs. Compact and robust, equipped with PowerCON / XLR 3pin.
- The perfect solution for many DMX-line problems: this compact DMX-splitter divides any DMX-chain in 2 separate lines that will not interfere with each other. Problems on 1 line will not nfluence the other line!
Maximum security, thanks to complete galvanic isolation between all DMX in/outputs - 100% RDM compatible for bidirectional DMX-communication
- The booster function makes your DMX-installation more reliable and flexible to set up.
- Specially designed for professionals:
-Small size: can be hidden anywhere
-Very robust construction: perfect for the rental applications

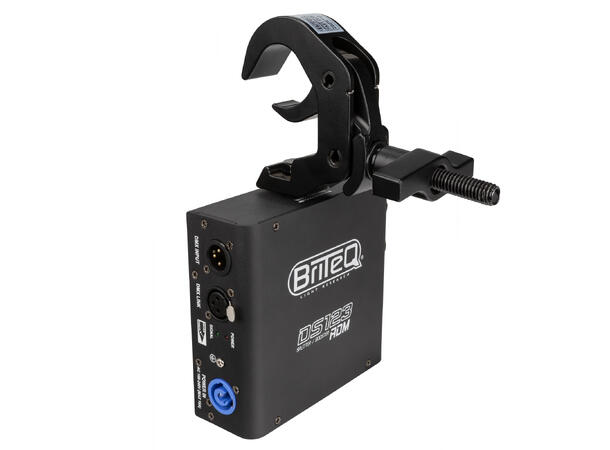

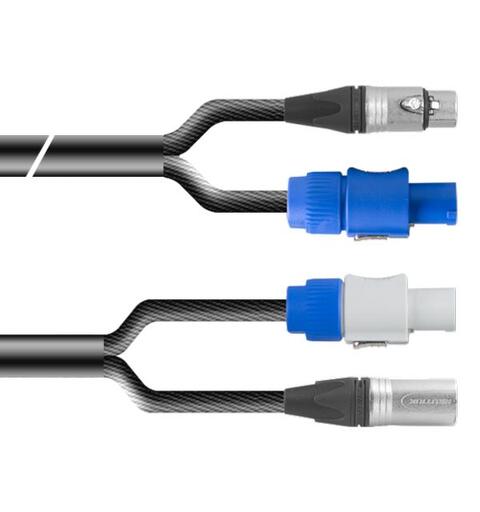

-Can be fitted with any standard truss clamp with M10 thread: easy truss installation - Adapted for use with HILEC® COMBI-cables (combined power + DMX)!
- Connections:

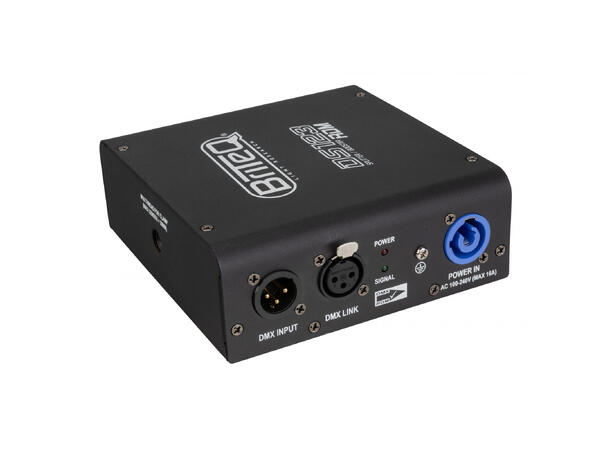

-1 input: DMX 3pin (+ DMX pass-through) & 16A PowerCON-compliant Seetronic® connector.

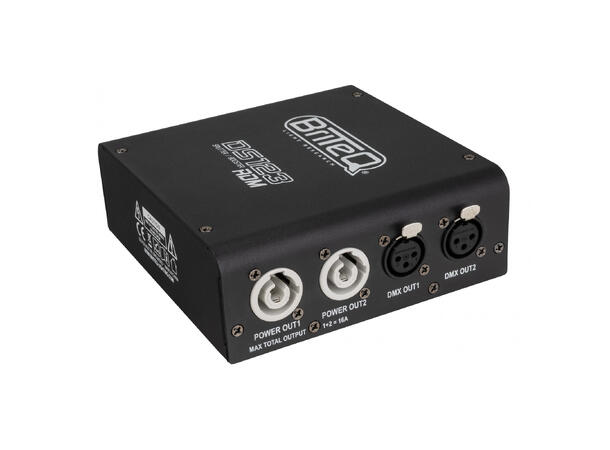

-2 outputs, each with: DMX 3pin + 16A PowerCON-compliant Seetronic® connector. - There is also a model (DS125-RDM) equipped with 16A PowerCON TRUE1-compliant and XLR 5pin connectors
- Power + signal present indicators.
- Internal power supply 100-240Vac
