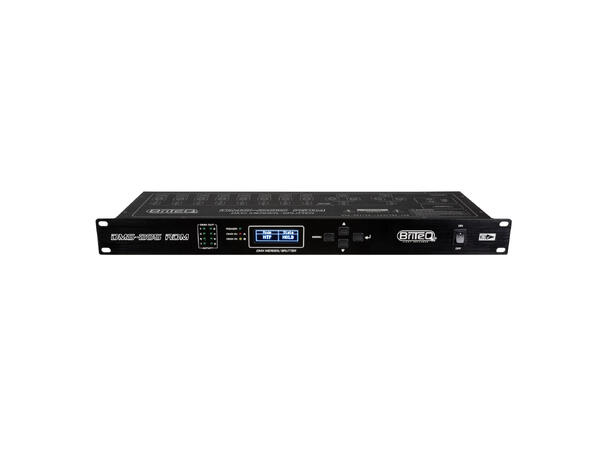

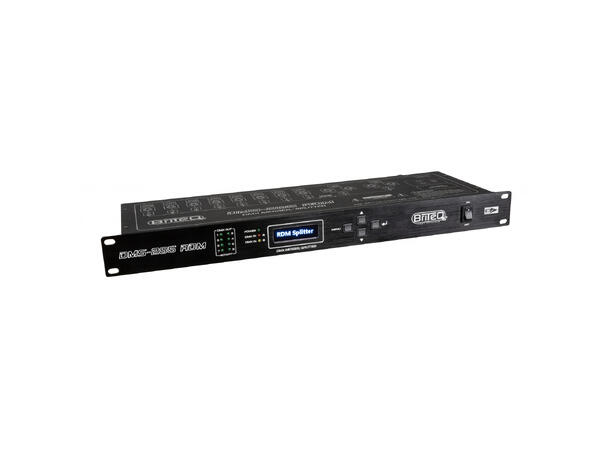

Briteq DMS-285 RDM Merge/Splitt/Boost2 in / 8 out, 5pin XLR,

9 628,-

This DMX merger + splitter + Booster with RDM support is the perfect all-in-one solution to secure your DMX-installations: 100% electrical isolation between all in-/outputs!

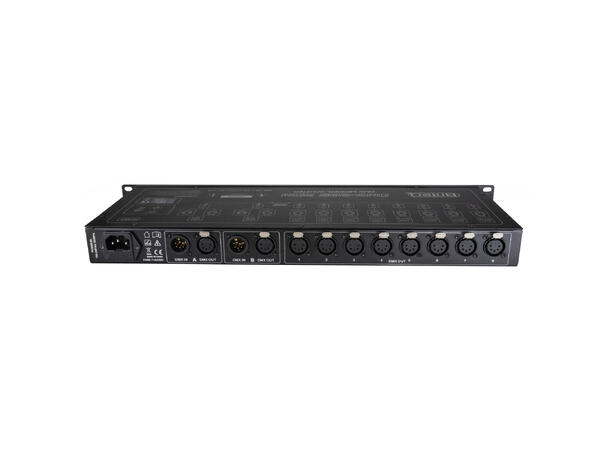

2 DMX-inputs + 8 DMX-outputs, each equipped with 5pin XLR-connectors.
Different port modes to combine 2 DMX signals (on inputs A and B) in different ways:
- HTP : the highest value of 2 identical channels from 2 DMX-signals has priority.
- LTP : the last changed value of 2 identical channels from 2 DMX-signals has priority.
- Backup : when the DMX-signal on input A fails, the DMX-signal on input B takes over immediately.
- A: 1-4 / B: 5-8 : DMX-signal on input A assigned to outputs 1 to 4, input B assigned to outputs 5-8.
The splitter function distributes the DMX-signal(s) from the A/B input(s) over 8 identical outputs.
Full electric isolation : all inputs and outputs are 100% isolated from each other: problems that occur on any in/output will not influence the other in/outputs!
RDM filtering : RDM on both inputs can be filtered to prevent unexpected behavior of DMX equipment.
The timing of the DMX-outputs can be adapted from 20Hz (slow) to 40Hz (fast) for increased compatibility while connecting “slow” DMX-devices to “fast” DMX-controllers.
Output behavior can be selected when suddenly both DMX-inputs fail:
- No DMX : no DMX signal on the outputs.
- HOLD : keep the last DMX values on the outputs.
- ZERO : set the DMX values on all outputs to zero.
Easy setup via graphic OLED display.

Briteq DMS-285 RDM Merge/Splitt/Boost 2 in / 8 out, 5pin XLR,

Tilbehør

TRANSCENSION PowerCon splitter 19"

Alternativer

Artikler

Antall artikler funnet:

Briteq DMS-285 RDM Merge/Splitt/Boost

2 in / 8 out, 5pin XLR,

Varenr: 183649

Alt. varenr: DMS-285 RDM

9 628,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om å bli kunde her.

Ikke på lager i Oslo. Ta kontakt for leveringstid.

Beskrivelse

This DMX merger + splitter + Booster with RDM support is the perfect all-in-one solution to secure your DMX-installations: 100% electrical isolation between all in-/outputs!
2 DMX-inputs + 8 DMX-outputs, each equipped with 5pin XLR-connectors.
Different port modes to combine 2 DMX signals (on inputs A and B) in different ways:
- HTP : the highest value of 2 identical channels from 2 DMX-signals has priority.
- LTP : the last changed value of 2 identical channels from 2 DMX-signals has priority.
- Backup : when the DMX-signal on input A fails, the DMX-signal on input B takes over immediately.
- A: 1-4 / B: 5-8 : DMX-signal on input A assigned to outputs 1 to 4, input B assigned to outputs 5-8.
The splitter function distributes the DMX-signal(s) from the A/B input(s) over 8 identical outputs.
Full electric isolation : all inputs and outputs are 100% isolated from each other: problems that occur on any in/output will not influence the other in/outputs!
RDM filtering : RDM on both inputs can be filtered to prevent unexpected behavior of DMX equipment.
The timing of the DMX-outputs can be adapted from 20Hz (slow) to 40Hz (fast) for increased compatibility while connecting “slow” DMX-devices to “fast” DMX-controllers.
Output behavior can be selected when suddenly both DMX-inputs fail:
- No DMX : no DMX signal on the outputs.
- HOLD : keep the last DMX values on the outputs.
- ZERO : set the DMX values on all outputs to zero.
Easy setup via graphic OLED display.
