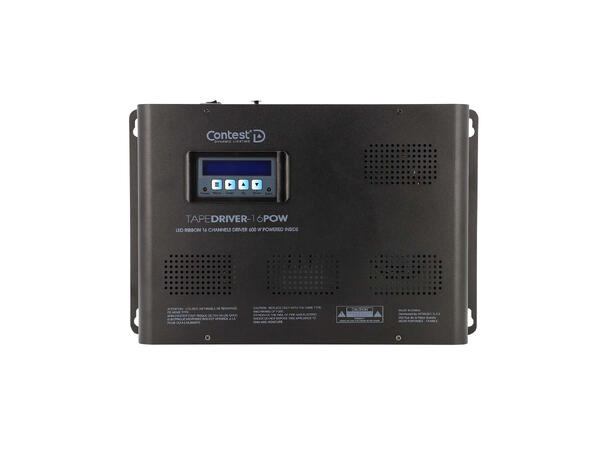

• The TAPEDRIVER-16POW is a 16-channel LED driver with a 24V 600W power supply for managing up to 200W of LED power at constant voltage per output (the 600W will be distributed over the 4 outputs).
• The TAPEDRIVER-16POW can be used as a stand-alone device thanks to its internal programs or in DMX512 mode.
• The RDM function allows you to modify the main parameters of the device from a compatible console (DMX address, mode, etc.).
• The device menu is navigated via an LCD screen.
• It has a USB A port for connecting a Briteq^® WTR-DMX DONGLE for wireless DMX connection.
• Electrical specifications
  • Input voltage: 100~240 V AC 50-60 Hz
  • Input current: 6 A at 240V
  • Output voltage: 4 × 24 V DC per output
  • Output current: 16 x 2 A per output (25 A max.)
  • Output power: 4 x 200 W RGBW – 600 W max.
  • Output type: DC voltage
• Special features
  • Available PWM frequencies: 1.3 / 2 / 4 / 8 kHz
  • Output dimming: Gamma from 0.1 to 9.9
  • Encoding modes: 4, 6, 8, 12, 16 or 24 channels
  • Protections: overtemperature, overload and short-circuit, automatic reset
• Operating environment
  • Ambient temperature: -10 °C to +45 °C
  • IP rating: IP20
