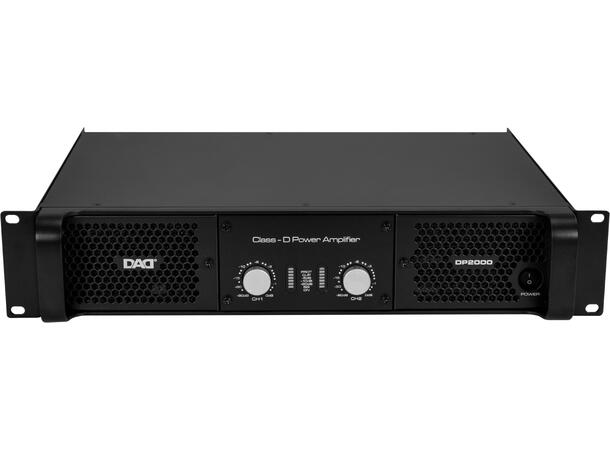

The innovative DAD’s D-class DP amplifiers series uses an advanced design that drastically reduces the weight and dissipation of heat. Efficiency between energy consumption and output available the power is 95%. The amplifiers of DP series are designed with a new high audio resolution D-class typology.

These revolutionary amplifier series provide a superior quality sound and an unequalled reliability. Protection circuits allow greater efficiency under difficult loads and power conditions. In other words, an amplifier that doesn’t hurt nor your budget nor your back!

Features:
Reaching a single-channel power output of 650/1050 W 8/4 Ohm, employs SMPS technology for the power supply stage and class D for the output stage, weighing only 7.8 kg.
These features make DP2000 the right choice for professional loudspeakers and for the Sub / MF / HF sections of multi-amplified systems.

AMPLIFIER
Channels: 2
Circuit class: digital

OUTPUT
Single channel power: 650/1050W 8/4 Ohm
Bridge mode power: 2100W 8 Ohm

AUDIO SPECIFICATIONS
Frequency responce: 20 - 20000Hz @ 8 Ohm (±0.5 dB)
THD+N: <0.15%
Slew rate: >10V/µs @ 8O
Damping factor: >500
Input impedance: 10kO
Signal/Noise rate: >100dB

POWER SUPPLY STAGE
Type: Switching
Operating voltage/frequency: 220 V ±10%, 50Hz

PROTECTIONS
Output: Soft-start, short circuit, DC, overheat
Input: Clip/limit, progressive volume

FUNCTIONS
Input mode: stereo, parallel, bridge / limiter
Input sensitivity/gain: 1Vrms/32dB/38dB

INDICATORS
Indicators: 2 x LED bar - signal level, and over temperature protection

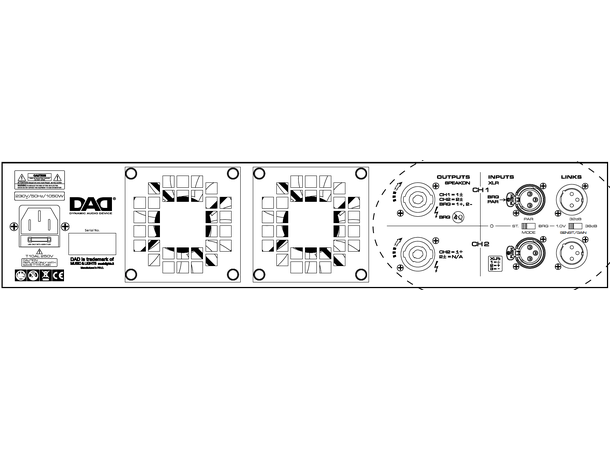

INPUT/OUTPUT CONNECTORS
Input signal: XLR in/out
Output signal: 4p in/out, binding post
Power connection: VDE

PHYSICAL
Cooling: forced air with low noise fan
Dimensions (WxHxD): 483x89x382mm
Rack unit: 2
Weight: 7.8kg
