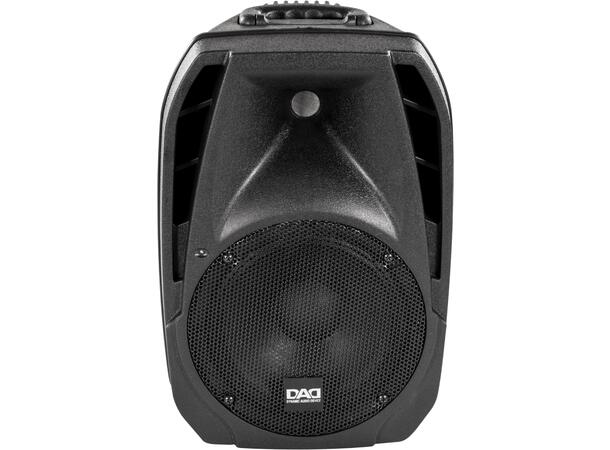

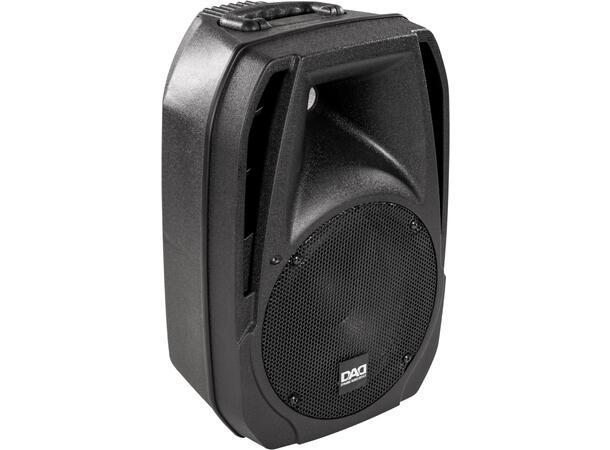

2-way passive loudspeakers, 120 W AES, 120dB SPL

Features:
Low frequency: 8'' woofer/1.5''v.c.
High frequency: 1'' driver/1.4''v.c.
Frequency response: 80-20000 Hz (±3dB)
Cabinet designed for stage-monitor applications
Polypropylene box equipped with a handle in the upper side
Reproduction of voice and music for live and recorded performances
For portable PA systems, mobile DJ sets and voice/multimedia applications

LOUDSPEAKER
System type: passive 2 way

COMPONENTS
Low frequency: 8'' woofer/1.5''v.c.
High frequency: 1'' driver/1.4''v.c.

FEATURES
AES/program power: 120/240W
SPL max: 120dB @1m (free field)

ACOUSTICAL SPECIFICATIONS
Sensitivity: 93dB @1W/1m (free field)
Impedance: 8 Ohm
SPL cont/peak: 114/120dB @1m (free field)
Frequency response: 80-20000Hz (±3dB)
Coverage angle HxV: 90x45°
Cross over frequency: 3300Hz
Protection: H.F. signal compression
Recommended amplifier up to: 240W

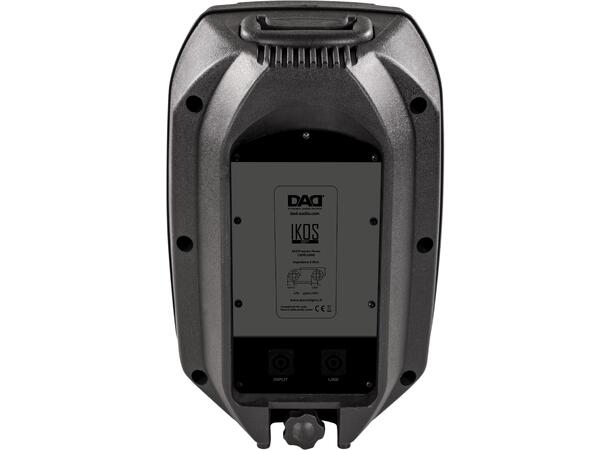

INPUT/OUTPUT CONNECTORS
Input signal: 4pole IN/OUT

CABINET CONSTRUCTION
Cabinet material: 4mm polypropilene
Sospension system: 35 mm mounting pole
Angle: 45° monitor applications
Handles: 1 top

PHYSICAL
Dimensions (WxHxD): 260x395x210mm
Weight: 5kg
