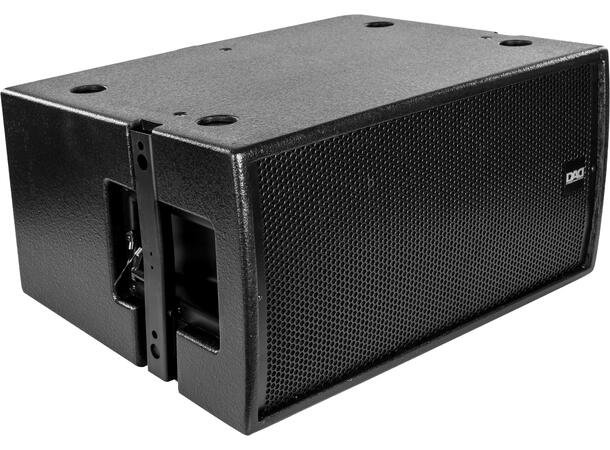

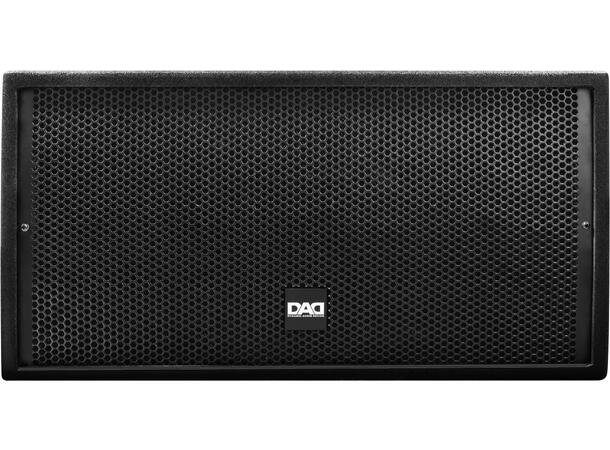

High-directivity passive module for line-array, 2-way 500 W AES, 138dB SPL

Features:
Low frequency: 2x10'' neodymium woofer/2.6''v.c.
High frequency: 1.4'' neodymium driver/3''v.c.
Frequency response: 65-18000 Hz (±3dB)
Coverage angle HxV: 80x10°
Hi-definition system for reproduction of voice and music in live and recorded performance
For sound installations in environments requiring dynamics and high sound pressure
Birch plywood enclosure

LOUDSPEAKER
System type: passive 2 way

COMPONENTS
Low frequency: 10'' neodymium woofer / 2.6'' v.c.
High frequency: 1.4'' neodymium driver / 3'' v.c.

FEATURES
AES/program power: 500/1000W
SPL max: 138dB @1m (free field)

ACOUSTICAL SPECIFICATIONS
Sensitivity: 101dB @1W/1m (free field)
Impedance: 8 Ohm
SPL cont/peak: 132/138dB @1m (free field)
Frequency response: 70-18000Hz (±3dB)
Coverage angle HxV: 80x10°
Cross over frequency: 1100Hz
Protection: H.F. signal compression

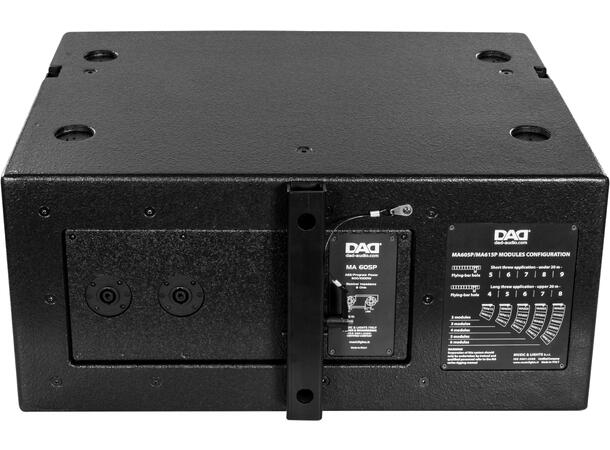

INPUT/OUTPUT CONNECTORS
Input signal: Neutrik NL4 IN/OUT

CABINET CONSTRUCTION
Cabinet material: 18mm birchplywood

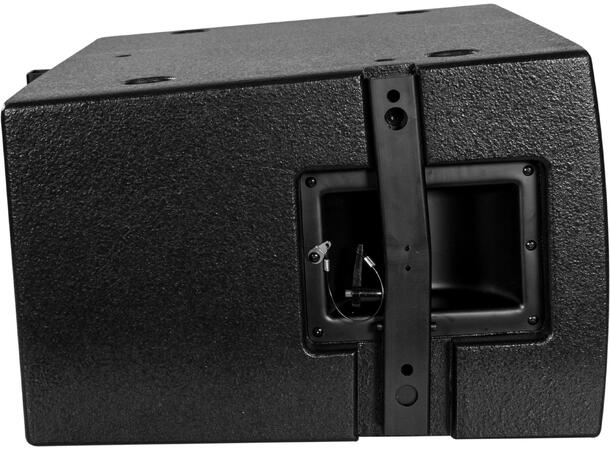

Sospension system: fixed angle bracket, M8 eyebolt, 35 mm pole mount
Angle: 5° trapezoidal taper
Handles: 2 on side

PHYSICAL
Dimensions (WxHxD): 656x332x497mm
Weight: 28kg
