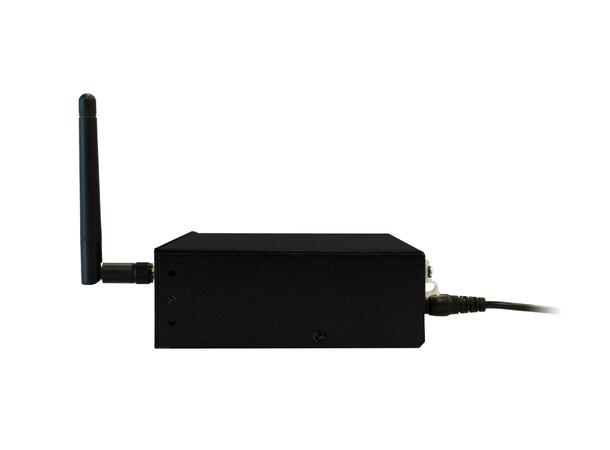

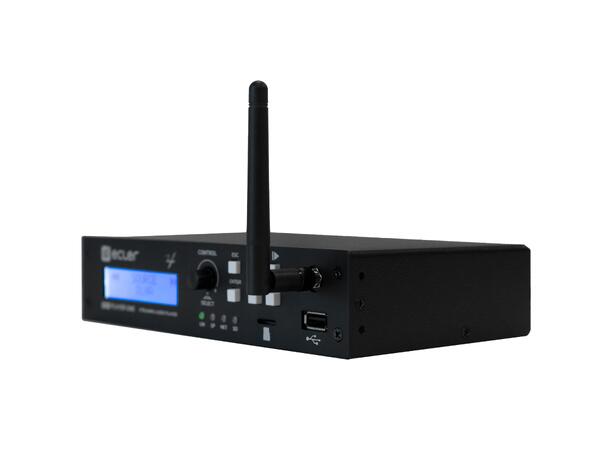

PLAYER ONE
Compact audio player with stereo output that plays music from local storage (USB/MicroSD), Internet streams, or digital sharing streams (DLNA/AirPlay).
Main features
- Single-deck audio player
- Stereo output RCA + mini-jack
- Internet streaming receiver
- DLNA and AirPlay compatible
- Local media player (USB/MicroSD)

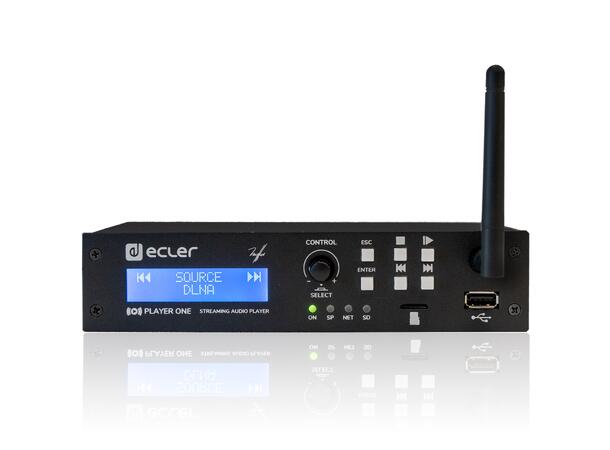

- Front panel LCD display and local controls
- Programmable via front panel, embedded web app, Ecler Gallery
- Calendar events, Cloud Disk Sync, Lua scripting
- JSON protocol compatible
Technical specifications
- Processor: MIPS Single Core 64bit 580MHz
- Sampling rate: 48kHz
- Resolution: 16 bit
- Bit rate: 32-320kbps
- Frequency response: 5Hz-24kHz (-3dB)
- Audio sources: Local storage (USB & microSD), Internet radio, AirPlay, DLNA
- File formats: mp3, ogg, WAV, FLAC, AIFF
- Playlist formats: m3u, pls
- Dynamic range: -80dB to 0dB
- THD+Noise: <0.008% (1kHz, 1Vrms)

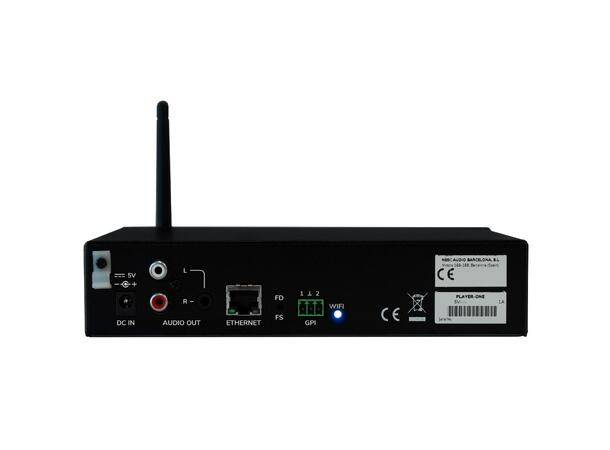

- Outputs: 2x Stereo unbalanced, RCA + minijack
- Max output level: 6dBV/5k ohm
- Ethernet: 1 RJ45 10/100Mbps
- Wi-Fi: 2.4GHz 802.11 b/g/n
- Control: Web App, RePLAYER, Ecler Gallery, JSON
- GPIs: 2 ports dry contact
- Display: LCD Alphanumeric 2x16
- Micro SD: SDXC up to 2TB
- USB: 2.0 High Speed
- Power supply: External universal 5VDC
- AC mains: 90-264VAC 50-60Hz
- Power consumption: 6VA/3W
- Installation: Desktop, rack 1/2 of 1UR
- Dimensions: 198.5x44x132mm
- Weight: 0.8kg
