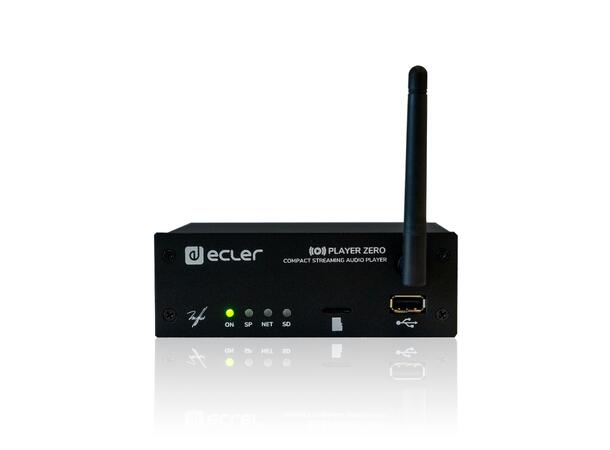

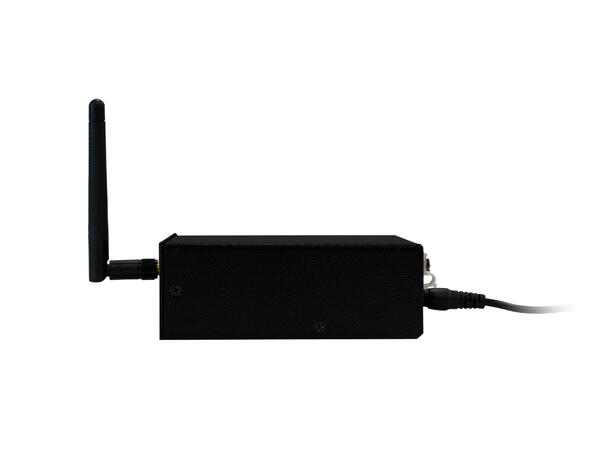

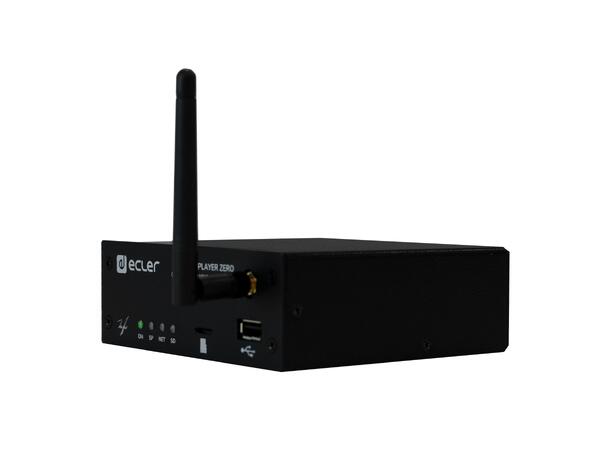

PLAYER ZERO
Compact audio player with stereo output that plays music from local storage (USB/MicroSD), Internet streams, or digital sharing streams (DLNA/AirPlay); no display, smaller than PLAYER ONE.
Main features
- Single-deck audio player
- Stereo output RCA + mini-jack
- Internet streaming receiver
- DLNA and AirPlay compatible
- Local media player (USB/MicroSD)
- Programmable via embedded web app, Ecler Gallery
- Calendar events, Cloud Disk Sync, Lua scripting
- JSON protocol compatible
Technical specifications
- Processor: MIPS Single Core 64bit 580MHz
- Sampling rate: 48kHz
- Resolution: 16 bit
- Bit rate: 32-320kbps
- Frequency response: 5Hz-24kHz (-3dB)
- Audio sources: Local storage (USB & microSD), Internet radio, AirPlay, DLNA
- File formats: mp3, ogg, WAV, FLAC, AIFF

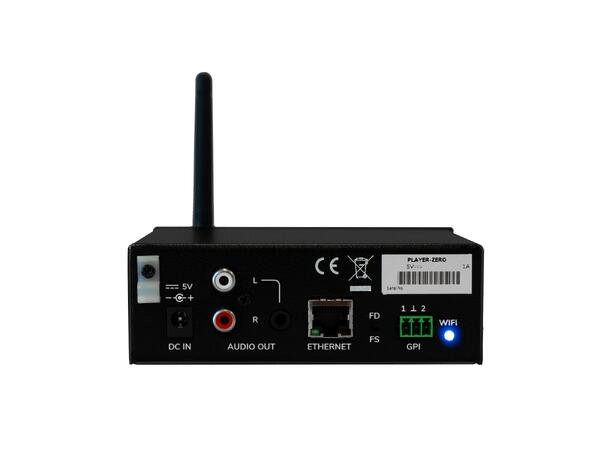

- Outputs: 2x Stereo unbalanced, RCA + minijack
- Max output level: 6dBV/5k ohm
- Ethernet: 1 RJ45 10/100Mbps
- Wi-Fi: 2.4GHz 802.11 b/g/n
- Display: No
- GPIs: 2 ports dry contact
- Micro SD: SDXC up to 2TB
- USB: 2.0 High Speed
- Power supply: External universal 5VDC
- AC mains: 90-264VAC
- Power consumption: 4.5VA/2.2W
- Installation: Desktop, rack 1/3 of 1UR
- Dimensions: 126.5x44x132mm
- Weight: 0.6kg
