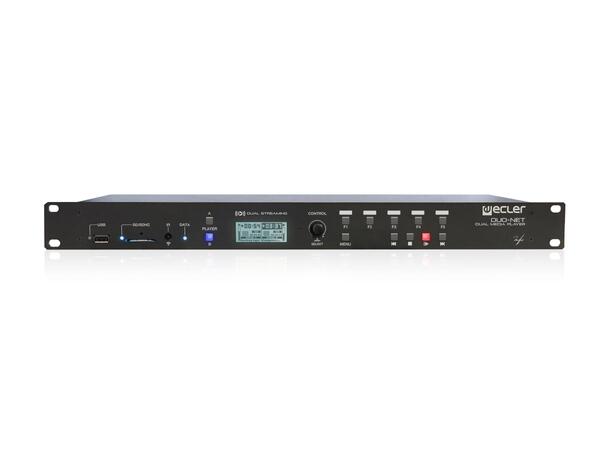

DUO-NET PLAYER
Double audio sound source with full EclerNet compatibility, featuring 2 independent stereo media players for Internet streams or local/networked audio.
Main features
- 2 independent media players, each with dedicated stereo output
- mp3/ogg/AAC/WAV/FLAC compatible
- SD and USB slots
- Ethernet for EclerNet/TP-NET, streaming and networked playback
- Fully programmable via EclerNet software
- UCP remote control (WPNETTOUCH compatible)
- RTC + NTP sync for scheduled events
- 4 GPI ports

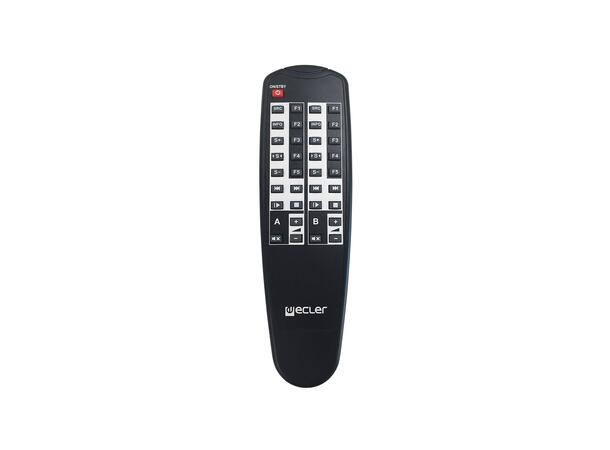

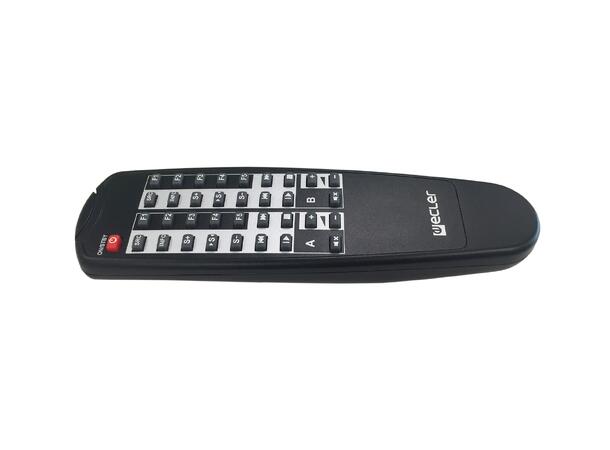

- IR remote control
- Priority media (emergency/advertising) over program audio
Technical specifications
- Sampling rate: 48kHz
- Resolution: 24 bit
- Frequency response: 5Hz-24kHz (-3dB)
- Audio sources: Network (Samba), USB, SD, Internet Radio
- File formats: mp3, ogg, WAV, AAC, FLAC, OPUS
- Dynamic range: -100dB (20Hz-20kHz)
- THD+Noise: <0.005%

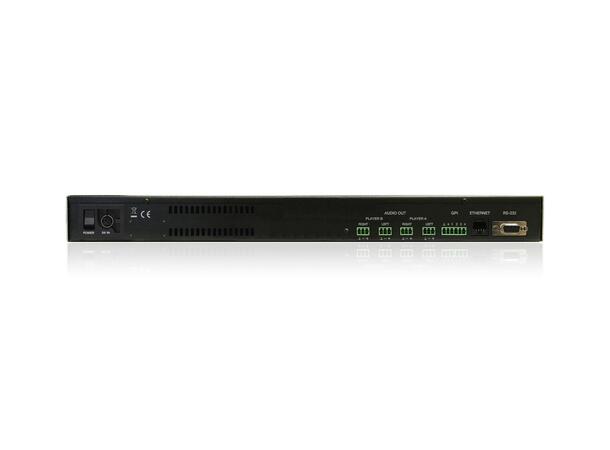

- Outputs: 2 stereo, Euroblock 3-pin balanced
- Max output level: +12dBV
- Ethernet: 1 RJ45 10/100Mb
- Serial port: RS-232 DB9
- Control: EclerNet Manager, UCP, WPmSCREEN, TP-NET
- GPIs: 4, 0-10VDC
- Display: LCD 160x64 pixels
- Micro SD: SD ver1.0/SDHC up to 32GB
- USB: 2.0 High Speed up to 2TB
- Power supply: Universal external multi-plug
- AC mains: 100-240VAC + 17.5VDC PSU
- Power consumption: 15VA
- Installation: 19" rack 1RU
- Dimensions: 482.6x44x120mm
- Weight: 1.8kg
