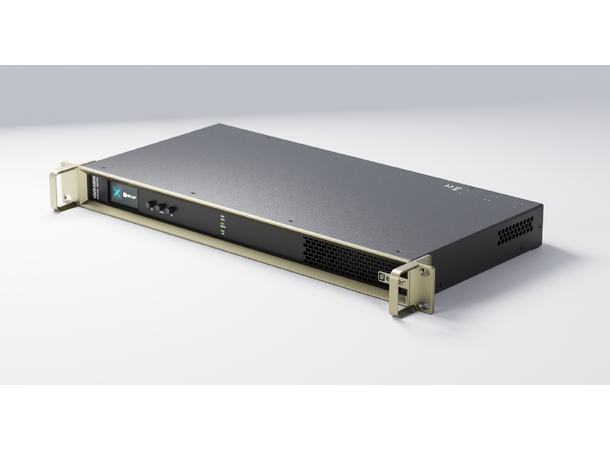

VIVO-X8D8
EclerPLEX Host matrix with 8 analogue and 8 Dante/AES67 audio input ports, 8 analogue and 8 Dante/AES67 output ports, scalable via two X-link expansion ports.
Main features
- EclerPLEX ecosystem host matrix unit
- 8 MIC/LINE analogue inputs (+48V Phantom selectable)
- 8 LINE analogue outputs
- 8 Dante/AES67 digital inputs (4 flows)
- 8 Dante/AES67 digital outputs (4 flows)
- 8 GPI + 8 GPO ports
- 1 microSD slot for 4 internal players
- 2x X-link expansion ports (each connects a BIO-X8 or BIO-X8G)
- Scalable up to 32x32 audio matrix / 24x24 GPIO with 2 expansion units
- 2x Ethernet (NET1 control, NET2 control+Dante/AES67)
- 1x RS-232

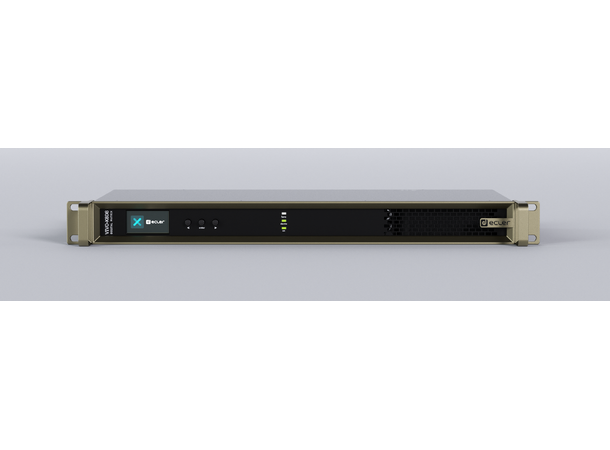

- 1.7” colour TFT display
- Embedded EclerPLEX application (Workspace, UCP editor/server, scripting, 4 SW players, 2 generators, EclerCLOUD, auto update)
Technical specifications
- Processor: Quad core 64bit 1.5GHz
- Sampling rate: 48kHz
- Resolution: 32 bit
- Latency: 3.87ms
- Frequency response: 10Hz-20kHz(-0.5dB)
- Dynamic range: ADC 115dB, DAC 115dB

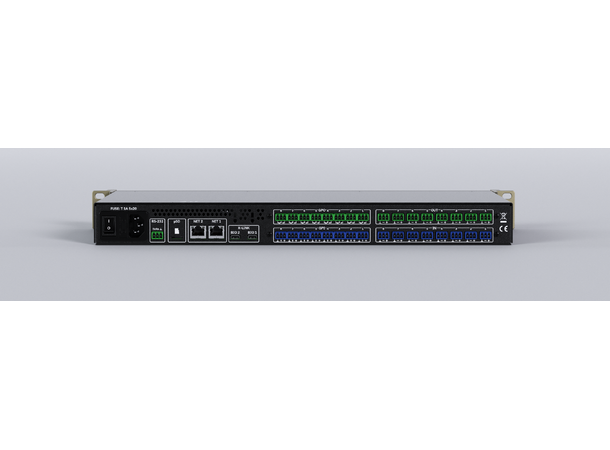

- Analogue inputs: 8 MIC/LINE, Euroblock 3-pin balanced
- Input sensitivity: -32.5 to +18.5dBV
- Phantom power: +48VDC 10mA max
- Analogue outputs: 8 LINE, Euroblock 3-pin balanced
- Max output level: 18.5dBV
- Dante/AES67: 4/4 flows, 8 in/8 out, 1x RJ45 NET2
- Ethernet: 2x RJ45 (NET1/NET2)
- X-LINK: 2x USB-C
- Serial: RS-232 Euroblock
- Control: EclerPLEX web app, TPNET, UCP panels
- GPIs: 8, 0-12VDC
- GPOs: 8, isolated relay 2A/30VDC
- RTC retention: >5 years
- Micro SD: SDXC up to 2TB
- Power supply: Universal internal SMPS
- AC mains: 100-240VAC 50-60Hz
- Power consumption: <19W typ/<23.5W max
- Installation: Desktop, 19" rack 1RU
- Dimensions: 482.4x44x214mm
- Weight: 3.2kg
