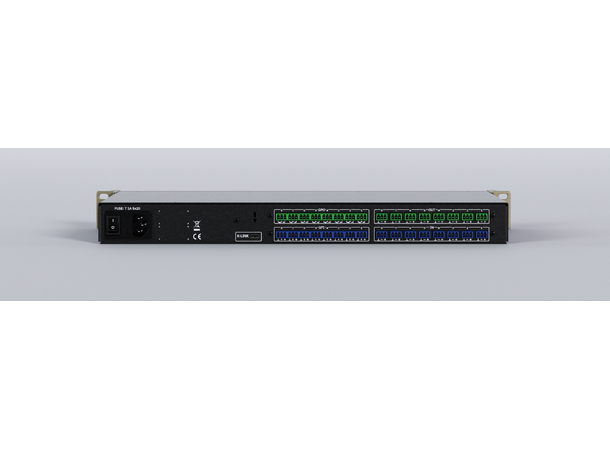

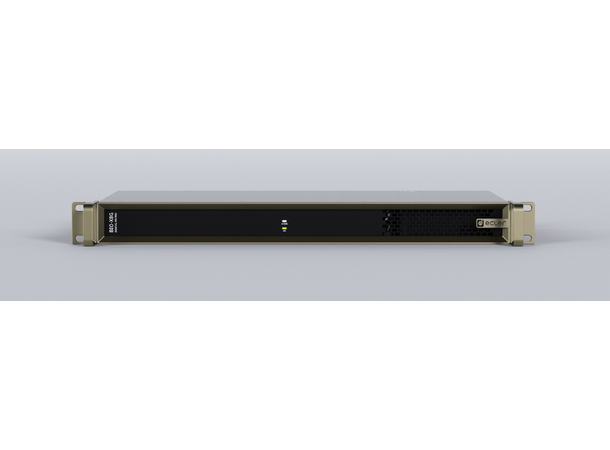

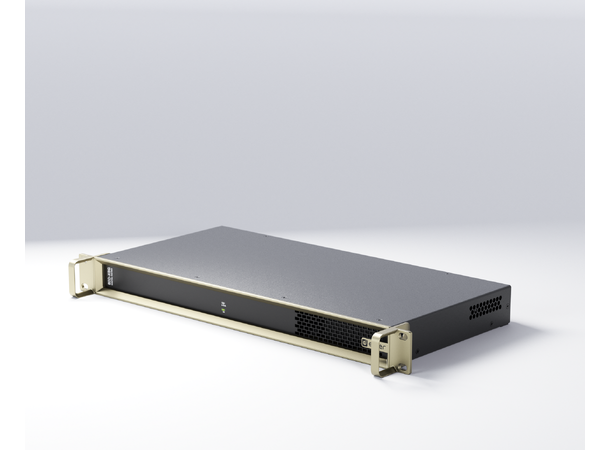

BIO-X8G
Affordable EclerPLEX expansion interface adding 8 analogue audio I/O ports plus 8 GPI and 8 GPO ports to a VIVO host matrix.
Main features
- EclerPLEX audio I/O + control expansion unit, compatible with VIVO host units
- Connects via X-link (1m certified cable included)
- Adds 8 MIC/LINE analogue inputs (+48V Phantom selectable) + 8 LINE analogue outputs + 8 GPI + 8 GPO
- Max 2x BIO-X8G per VIVO host, up to 24x24 analogue ports and 24x24 GPIO
Technical specifications
- Sampling rate: 48kHz
- Resolution: 32 bit
- Latency: 3.87ms
- Frequency response: 10Hz-20kHz(-0.5dB)
- Dynamic range: ADC 115dB, DAC 115dB
- Inputs: 8 MIC/LINE Euroblock 3-pin balanced
- Phantom power: +48VDC 10mA max
- Outputs: 8 LINE Euroblock 3-pin balanced
- X-LINK: 1x USB-C
- GPIs: 8, 0-12VDC
- GPOs: 8, isolated relay 2A/30VDC
- Power supply: Universal internal SMPS
- AC mains: 100-240VAC 50-60Hz
- Power consumption: <16W typ/<20W max
- Installation: Desktop, 19" rack 1RU
- Dimensions: 482.4x44x214mm
- Weight: 3.0kg
