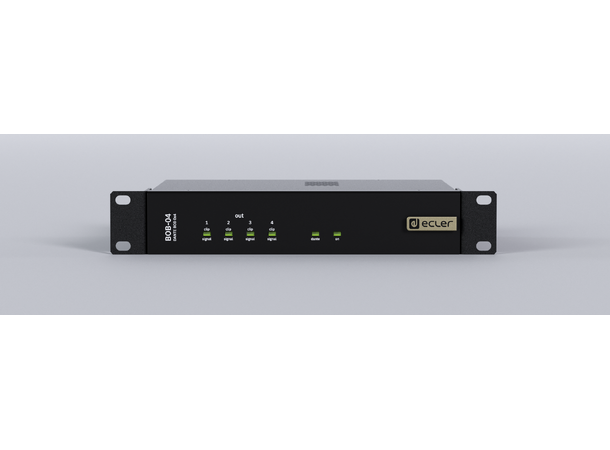

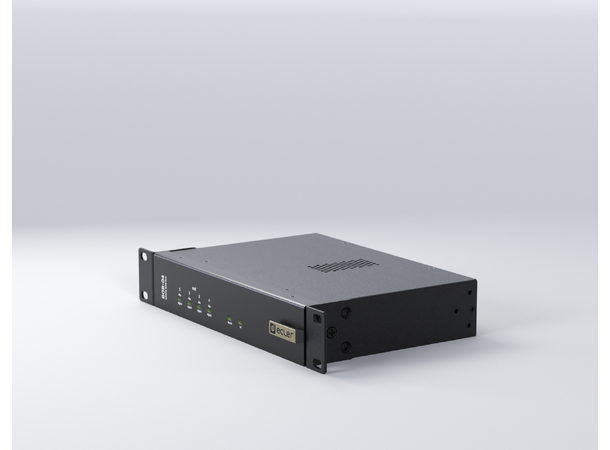

BOB-04
Dante/AES67 digital audio breakout box delivering 4 LINE-level analogue outputs converted from 4 Dante/AES67 channels received over Ethernet.
Main features
- Ethernet interface
- Euroblock connectors for analogue outputs
- 4 Digital Dante/AES67 channel reception
- 4 LINE level analogue outputs
- PoE power supply ready
- Compact format
- Frontal support half-rack accessory included
- Generic Dante/AES67 device usable with EclerNet/EclerPLEX/VIDA/HALO or third-party Dante devices (not a native EclerNet/EclerPLEX guest unit)
Technical specifications
- Sampling rate: 48kHz
- Resolution: 24bit
- Latency: 1/2/5ms selectable
- Frequency response: 0-20kHz
- Dynamic range: 115dB typ

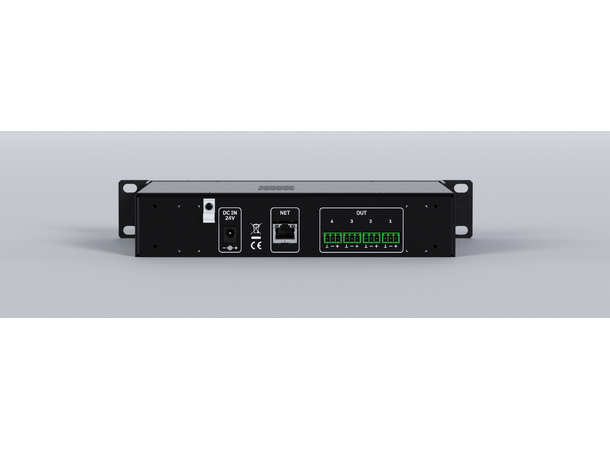

- Outputs: 4 LINE, Euroblock 3-pin balanced
- Max output level: +18dBV
- Output impedance: 316 ohm
- Crosstalk: >95dB
- Dante/AES67: 2 flows, 4 digital outputs, 1x RJ-45
- Ethernet: 10/100Mb,1GB Auto X-Over
- Control: Dante Controller
- Power supply: 24VDC External PSU (sold separately)
- Secondary power: PoE class 0 802.3af PD
- AC mains: 90-265VAC 50-60Hz
- Power consumption: 13VA/7W
- Installation: Desktop, 19" rack 1RU
- Dimensions: 266.1x44x156.2mm
- Weight: 1.1kg
