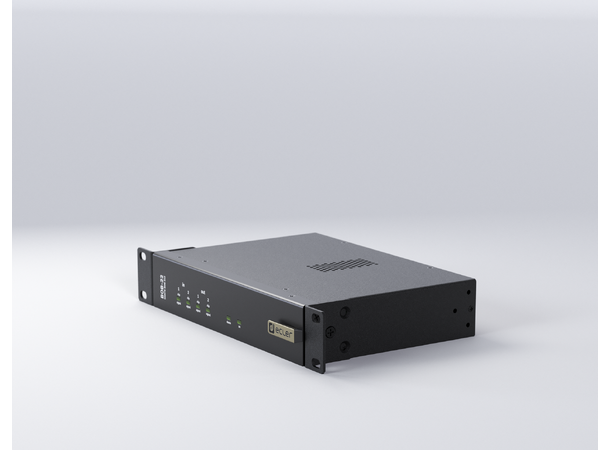

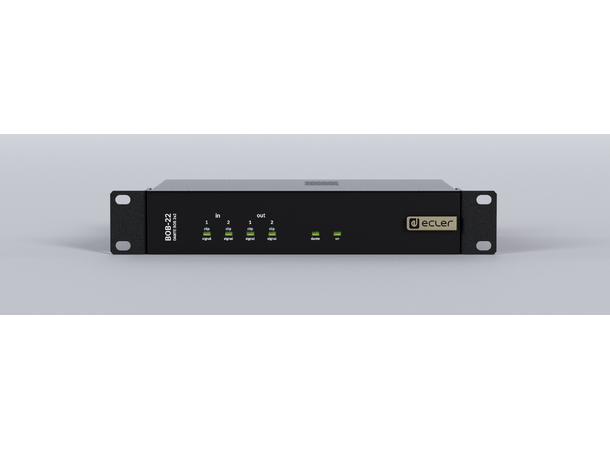

BOB-22
Dante/AES67 digital audio breakout box with 2 MIC/LINE analogue inputs and 2 LINE analogue outputs, converting to/from 2 Dante/AES67 channels.
Main features
- Ethernet interface
- Euroblock connectors for inputs/outputs
- 2 analogue MIC/LINE inputs
- 2 analogue LINE outputs
- 2x2 Dante/AES67 digital channels
- PoE power supply ready
- Phantom power (+48VDC via internal jumper)
- Adjustable input sensitivity (-50dBV to 0dBV)
- Compact format
- Frontal support half-rack accessory included
- Generic Dante/AES67 device (not a native EclerNet/EclerPLEX guest unit)
Technical specifications
- Sampling rate: 48kHz
- Resolution: 24bit
- Latency: ADC 0.81ms, DAC 0.56ms, total 1.37ms
- Frequency response: 0-20kHz
- Dynamic range: ADC 110dB, DAC 115dB

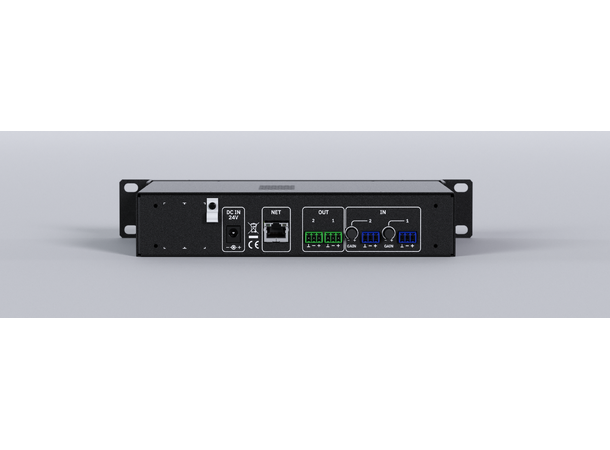

- Inputs: 2 MIC/LINE, Euroblock 3-pin balanced
- Input sensitivity: -50 to 0dBV
- Phantom power: +48VDC internal jumper
- Outputs: 2 LINE, Euroblock 3-pin balanced
- Max output level: +18dBV
- Crosstalk: >95dB
- Dante/AES67: 2/2 flows, 1x RJ-45
- Ethernet: 10/100Mb,1GB Auto X-Over
- Control: Dante Controller
- Power supply: 24VDC External PSU (sold separately)
- Secondary power: PoE class 0 802.3af PD
- AC mains: 90-265VAC 50-60Hz
- Power consumption: 14VA/8W
- Installation: Desktop, 19" rack 1RU
- Dimensions: 266.1x44x156.2mm
- Weight: 1.1kg
