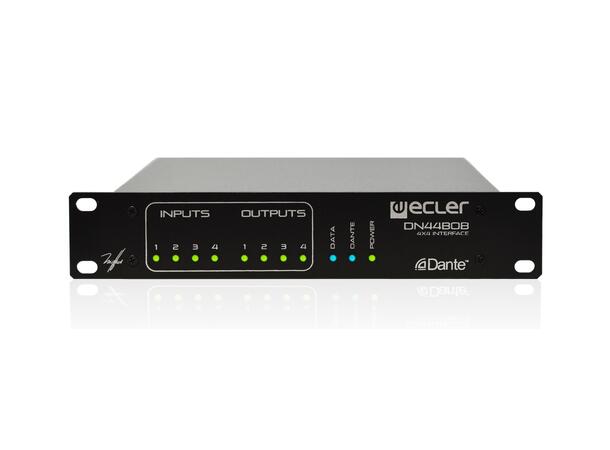

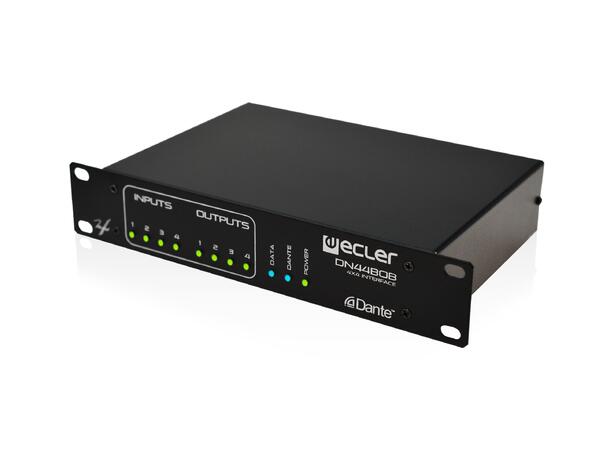

DN44BOB
4x4 Dante/AES67 Break Out Box converting 4 analogue audio signals to Dante channels and vice versa, with GPI/GPO control.
Main features

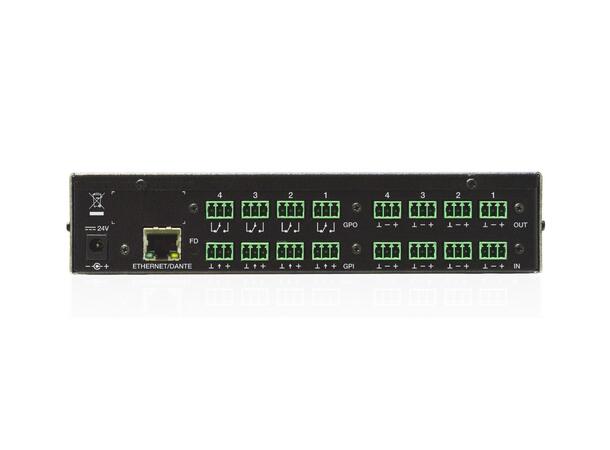

- Ethernet interface, Dante and EclerNet compatible
- 4 MIC/LINE balanced inputs with Phantom power and 3 sensitivity levels (Euroblock)
- 4 balanced LINE outputs (Euroblock)
- 4 GPI ports (0-10VDC)
- 4 GPO ports (NO/NC)

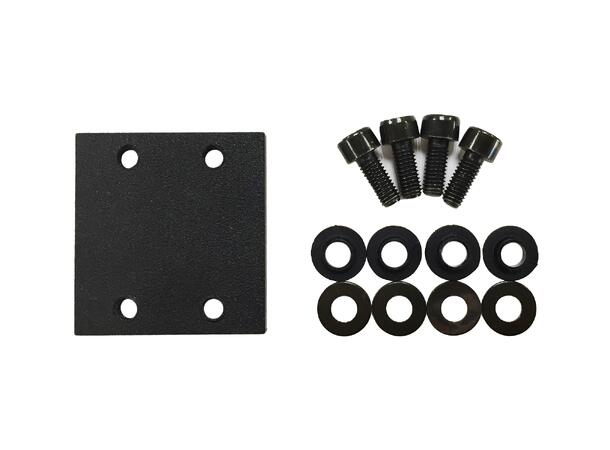

- Rack-mount kit included (1UHRMKIT + PUM3)
Technical specifications
- Processor: 32bit, 44.1/48/88.2/96kHz
- Resolution: 24bit AKM
- Latency: 1ms @48kHz
- Frequency response: 5Hz-24kHz(-3dB)
- Dynamic range: AD 110dB, DA 115dB
- Inputs: 4 MIC/LINE, Phoenix connector symmetrical
- Input sensitivity: -50 to +10dBV in 0.5dB steps
- Phantom power: +18VDC 5mA, software switched
- Outputs: 4 Line, Phoenix connector symmetrical
- Max output level: +18dBV
- Crosstalk: >90dB
- Dante/AES67: 2/2 flows, 4 in/4 out, 1x RJ45
- Ethernet: 10/100Mb Auto X-Over
- Control: EclerNet manager v3.05r2+
- Digital remote: 8 Euroblock
- GPIs: 4, 0-10VDC/TTL
- GPOs: 4, isolated relay 1A/48VDC
- Power supply: DC ±24VDC
- AC mains: 100-240VAC + 24VDC PSU
- Power consumption: 6.5W
- Installation: 19" rack 1RU
- Dimensions: 241x44x152mm
- Weight: 1.1kg
