PAGENETDN

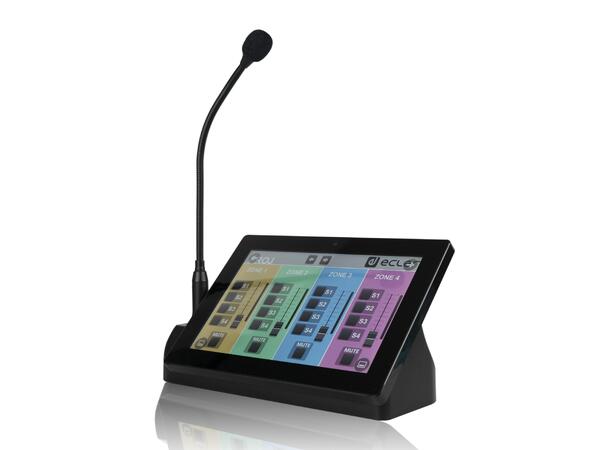

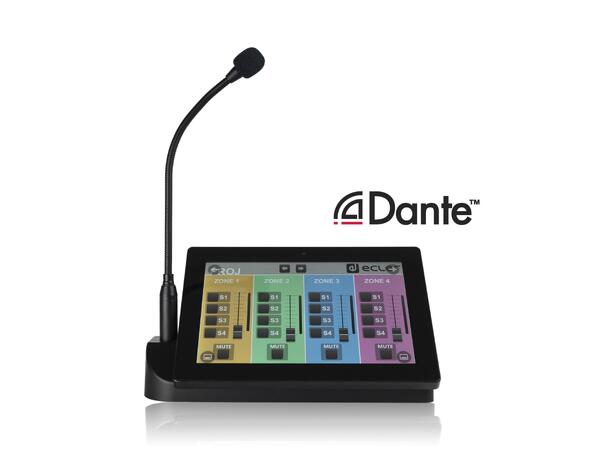

Desktop paging station for voice notices with Dante/AES67 audio over IP, 10" touch screen, works with MIMO7272DN/MIMO4040CDN matrices.
Main features
- Desktop paging station based on touch screen and programmable UCP panels
- Flexo type microphone included
- Audio transport using Dante
- EclerNet control device (server/client of UCP panels)
- 10" capacitive touch screen
- PoE or local power supply
- Ethernet interface
- Analog audio output
Technical specifications
- Number of output channels: 2 DANTE/AES67
- Number of input channels: 1 AUX
- Microphone type: Removable gooseneck condenser (eMCN1)
- Phantom power: 48VDC
- AoIP Protocols: Dante/AES67 (2 flows)
- Screen: 10.1" IPS, 1280x800, capacitive multi-touch
- Ethernet: RJ45, 10/100Mb/1GB, PoE supported
- Power supply: External 12VDC, PoE class 0 802.3af
- Max power consumption: 12W (PSU) / 15W (PoE)
- Dimensions: 295 x 155 x 135 mm
- Weight: 1.5 kg
