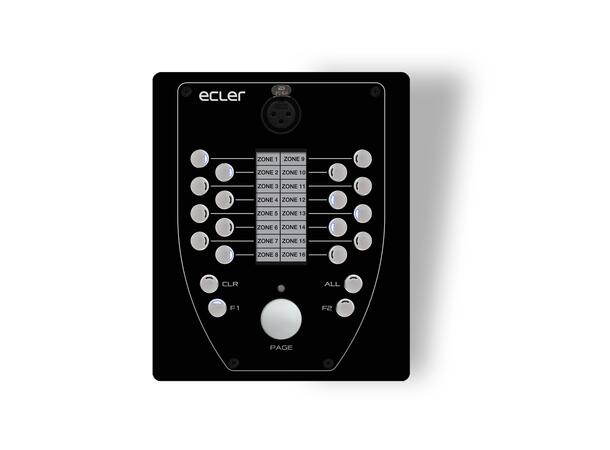

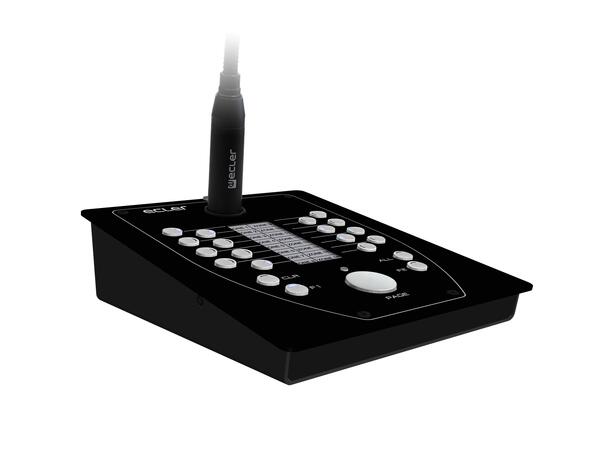

eMPAGE
Digital paging station (evolution of MPAGE16), compatible with HUB, MIMO88, MIMO88SG and MIMO1212SG, 16-zone with e-ink display.
Main features
- 20 mechanical keys with LED status (zone selection)
- PAGE key with LED
- Electronic ink display (zone names)
- Gooseneck microphone with XLR connector
- Manages up to 16 paging zones
- RJ45 single-cable connector (power, audio, control bus)
- Backup power connector optional
- Two units can work simultaneously with priority levels
Technical specifications
- Number of paging zones: 16
- Microphone type: Removable gooseneck condenser (eMCN1)
- Phantom power: 48VDC always ON
- Display: 296x128px Active Matrix Electrophoretic (e-ink)
- Ethernet: RJ45, Cat-5+, supports PoE
- Programming: RS485 and CAN
- Power supply: Optional 24VDC (min 80mA), recommended WP24-PSU
- Dimensions: 150 x 50 x 180 mm (mic excluded)
- Weight: 0.9 kg
