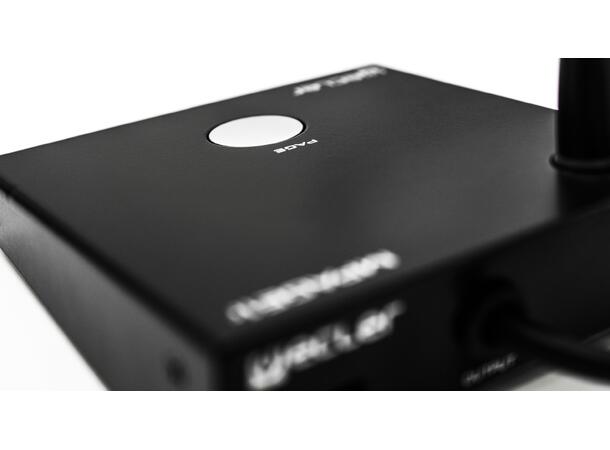

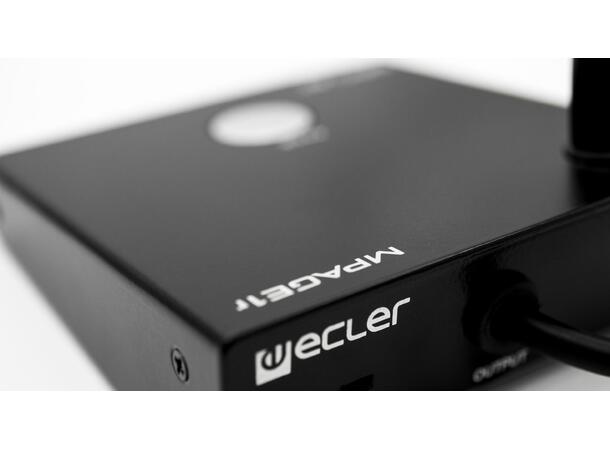

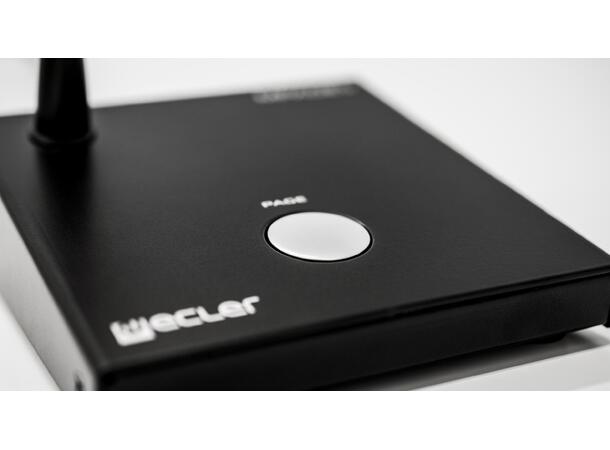

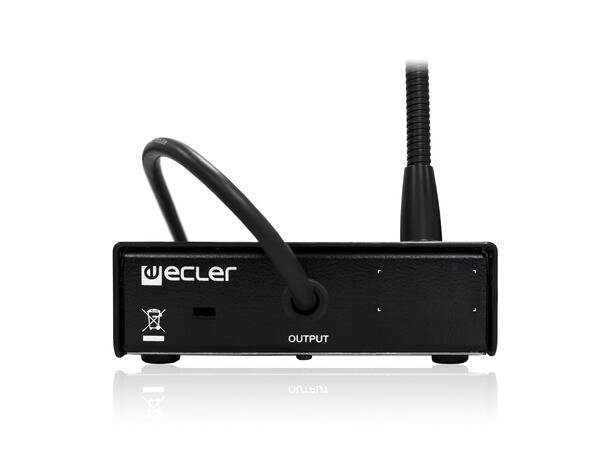

MPAGE1r
1-zone desktop paging station compatible with any device with a phantom-powered microphone input (SAM, COMPACT, DAM614, MIMO88, CA, HMA series etc.).
Main features
- 1 zone paging station
- PAGE key
- "PAGE ACTIVE" trigger port (GPO), NO/NC selectable
- Internal connections for secure wiring

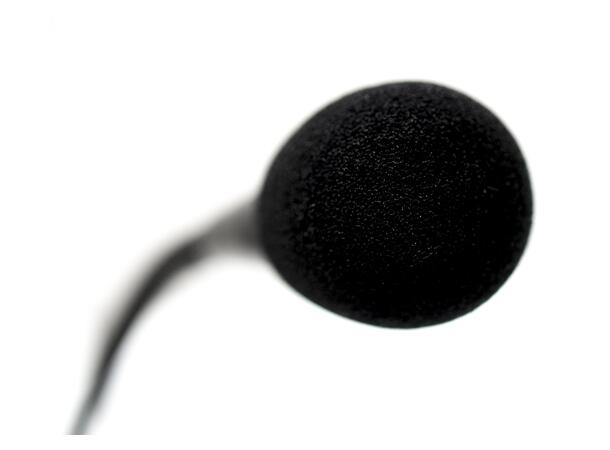

- Gooseneck condenser microphone
- Windscreen and connectors included (mic cable not included)
Technical specifications
- Number of paging zones: 1
- Microphone type: Non-removable gooseneck condenser
- Phantom power: +10 to +48VDC, 2mA
- Output connection: Balanced detachable 3-pole screw terminal
- Max output level: -24dBV @ 104dB SPL
- Dimensions: 120 x 43 x 126 mm (mic excluded)
- Weight: 0.625 kg
