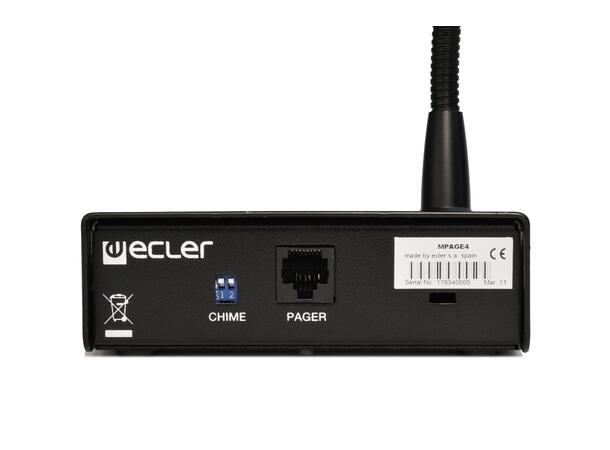

MPAGE4
4-zone desktop paging station compatible with DAM614 and CA series, allowing real-time paging with zone destination selection.
Main features
- 4 zone selection keys
- SELECT ALL, and PAGE keys
- Selectable chime melody
- Gooseneck microphone
Technical specifications
- Number of paging zones: 4
- Microphone type: Non-removable gooseneck condenser, cardioid
- Phantom power: +6 to 15V, 40mA
- Output connection: RJ45 (pager)
- Max output level: 0dBV @ 104dB SPL ±7dB
- Ethernet: 1 RJ45
- Dimensions: 120 x 43 x 126 mm (mic excluded)
- Weight: 0.625 kg
