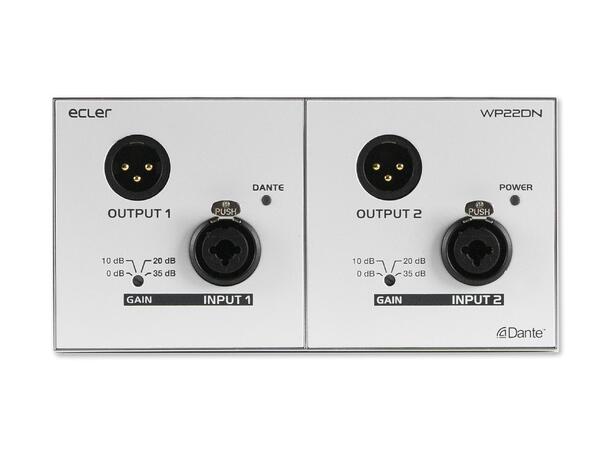

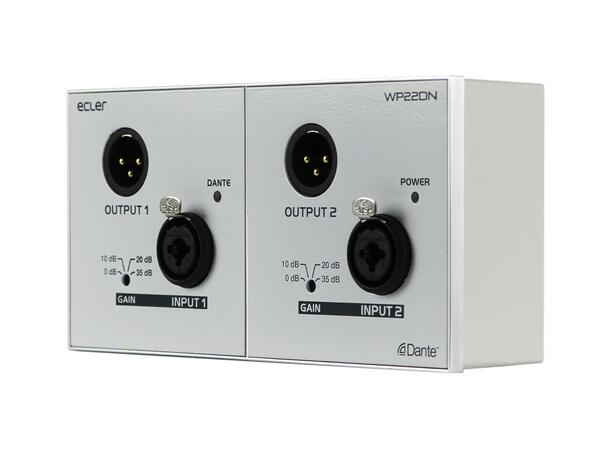

WP22DN
Dante/AES67 interface in wall panel format with 2 MIC/LINE inputs and 2 analogue outputs (XLR/Euroblock), double gang size, PoE.
Main features
- Dante interface wall panel
- PoE power or local power supply
- Ecler Double gang surface mount box included
Technical specifications
- Number of channels: 2+2 DANTE/AES67
- Mic inputs: 2 x XLRF + jack Combo, +48VDC phantom
- Line outputs: 2 XLR M external, 2 Euroblock internal
- AoIP: Dante/AES67 (2/2 flows)
- Audio converters: 48kHz, 24bit AKM
- Ethernet: 1 RJ-45, PoE supported
- Power supply: External 15-24VDC, PoE class 0
- Format: Double gang size
- Dimensions: 170 x 85 x 40 mm
- Weight: 0.4 kg
