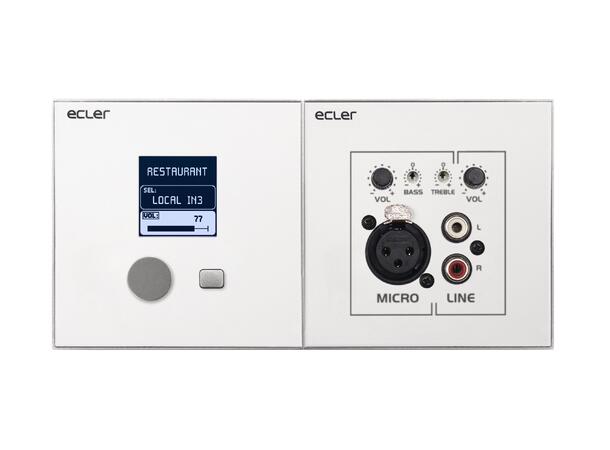

eMCONTROL1
Digital wall control compatible with HUB Series and eMIMO1616, configurable via embedded web application; source, volume, EQ control.
Main features
- Digital control panel compatible with HUB Series and eMIMO1616
- Volume adjustment, source selection and programmable EQ
- Compatible with WPa series panels via single CAT5 cable (audio + control + power)
- Styling by Italdesign Giugiaro
Technical specifications
- Display: 128x128px LCD
- Ethernet: 1 RJ45, CAT-5e+
- Serial port: RS-485
- Programming: Web app HANGAR
- Power supply: Optional 24VDC (min 30mA), WP24-PSU recommended
- Dimensions: 86 x 86 x 45 mm
- Weight: 0.15 kg
