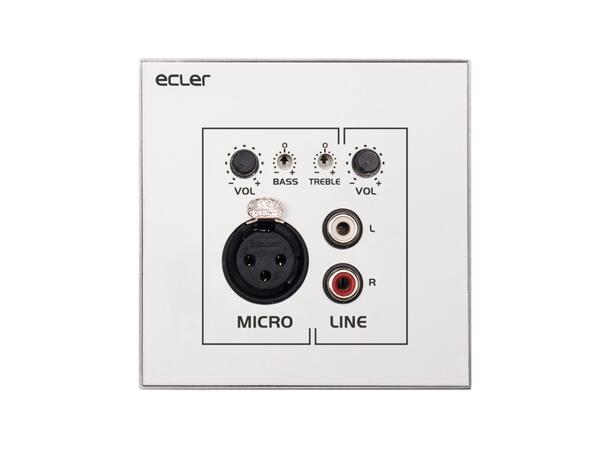

WPaMIX-T
2-channel micro-mixer in WPa wall panel format, mixing stereo unbalanced (2xRCA) with a microphone (XLR) signal into a balanced mono output.
Main features
- Unbalanced stereo line input (2xRCA)
- Balanced mic input with BASS/TREBLE EQ and selectable phantom power
- Independent volume controls for LINE and MIC
- Talk-over function (MIC over LINE)
- Requires external PSU (WP24-PSU, up to 20 units)
- Combinable with eMCONTROL1 as remote audio input for HUB Series

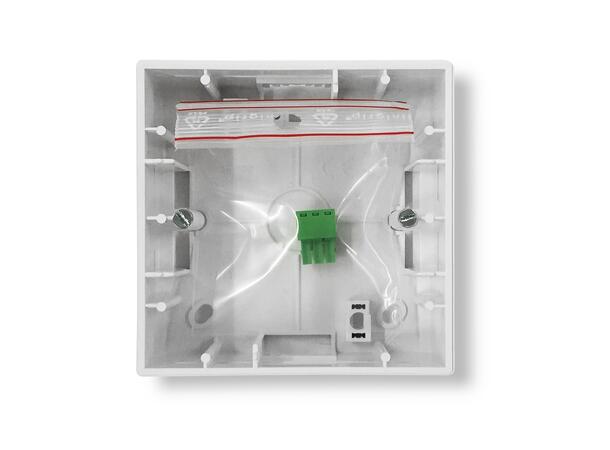

- Surface-mount box included
- White (RAL 9016)
Technical specifications
- Type: 2 channel micro-mixer with talkover
- Format: Single-gang EU
- Dimensions: 86 x 86 x 38 mm (with surface-mount box)
- Weight: 0.125 kg
- Finished colour: White (RAL 9016)
