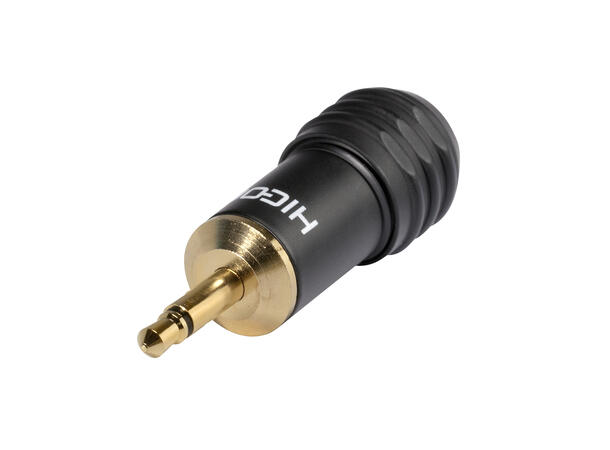

HICON HI-J35M04 3.5mm MiniJack Mono. For kanel Ø 4-6.8mm

HICON HI-J35M04 3.5mm MiniJack

Mono. For kanel Ø 4-6.8mm

Varenr: 147526
Alt. varenr: HI-J35M04
189,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om å bli kunde her.
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Little big man

The 3.5 mm (1/8“) mini jack connectors can be used on countless compact devices like MP3 players, sound cards, bodypacks etc. Here the HICON range offers a wide array of special features such as those versions• with screw lock for mobile applications (e.g. bodypacks)• with big cable holder (for twin cables, thick cables)• with chuck strain relief (for high tensile forces)• with 6.3 mm (1/4“) screw adapter (for headphones etc.)• 90° angled All variants have genuine gold-plated solid pins and come with a 5-year warranty.


Advantages:

  • With soldering lug and chuck strain relief.


Specifications:

Article numberHI-J35M04
EAN4049371812283
BrandHICON
Applicationaudio
Colourblack
Colour detailedblack
ModelMini-jack (3,5mm)
Style variantstraight
Gendermale
Materialmetal
Codingnone
Codableyes
Pole number2-pole
Connector / Socketmale connector
Type of contactSoldering
Contact coatinggold plated
MountingCable
Cable diameter min. mm4
Max. cable diameter mm6,8
Available sinceV07.0
