Veggbrakett og strømforsyning er inkludert.

NB! antenne selges separat. Se tilbehørsliste.

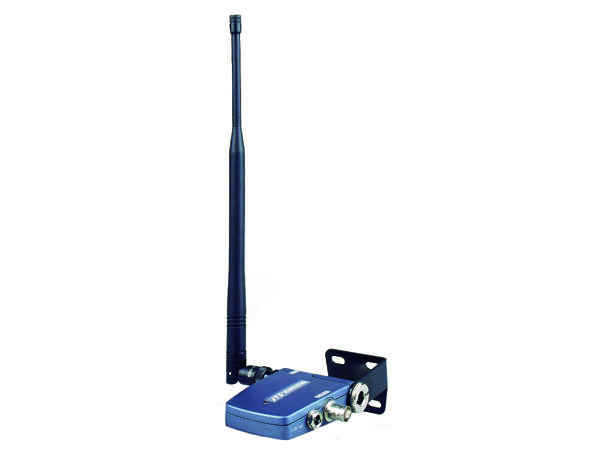

UB-900ACT is designed to compensate signal loss on long antenna cables or passive antenna splitter.
One UB-900ACT can compensate 10dB of cable attenuation which is about 20 meters of RG-58 cable.

This product is powered by power output from antenna distributor UA-960 or from receivers’ BNC connecter.
DC power supply is indicated by a red LED. Up to two UB-900ACT can be cascaded.
It can also be powered by DC input (adaptor included)

Carrier frequency range: 470~960MHz
Booster gain: 14(±2dB) dB
Coverage angle: 360 degree
Operation voltage: DC IN: DC +12V
RF OUTPUT(Receiver Power): +8~+12V
Dimension: 75mm * 18.2mm * 77mm
(Antenna & Rack Mount Kit Excluded)
Weight: 140g
