1. Designed for Hi-power multiple channels application, 16 channels output,and Max. 3A current per channel, up to 1152W output power.

2. Easy operation with OLED screen and touch buttons.

3. 4 kinds of mode optional: single color, color temperature, RGB and RGBW.

4. Support 3 kinds of DMX ports with signal isolation function: 5-pin XLR, RJ45 and green terminal (with signal amplifier function).

5. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition, etc.

6. With firmware upgrade function.
7. With short circuit, over current and over-heat protection, as well as warning function when fault.

8. With power-on state management and fast self-testing function.

9. 16bit (65536 levels) / 8bit (256 levels) grey level optional.

10.Optional for standard, linear, LOG or custom 0.1-9.9 dimming curve.

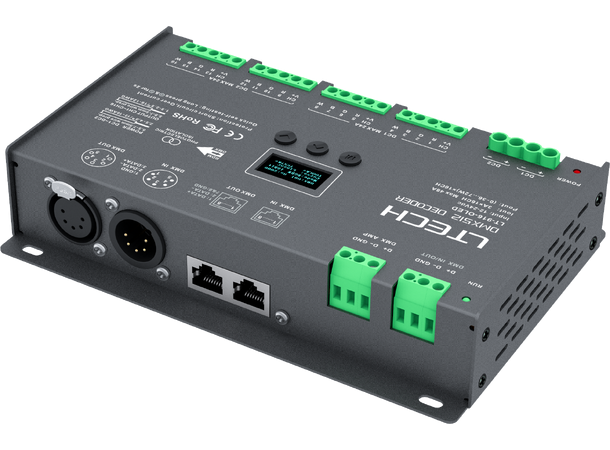

LT-916-OLED
DMX512/RDM
12~24Vdc
3A × 16CH   Max 48A
(0~36W...72W) × 16CH  Max. 1152W 5-pin XLR, RJ45, Green terminal Dimming/CT/RGB/RGBW
0.1~9.9
8bit (256 levels) / 16bit (65536 levels) Yes
Short circuit / Over current / Over-heat -30?~65?
L180×W122×H39mm L193×W127×H41mm
730g
