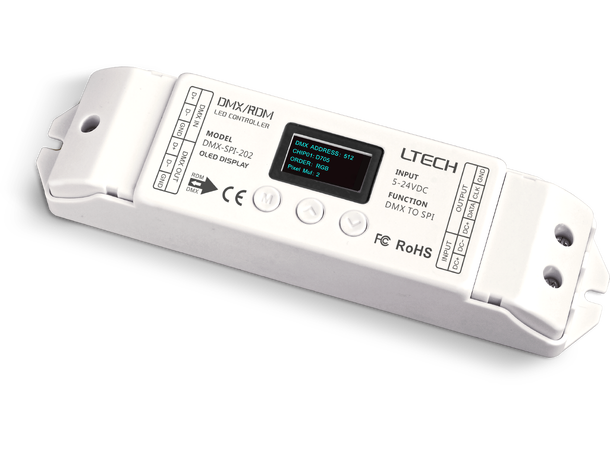

DMX-SPI-202 converts the universal standard DMX512 signal into SPI(TTL) digital signal and controls most of the pixel LED lights in the market. DMX digital console can control every channel of the LED lights, realizing 0~100% dimming or defining all sorts of changing effects.
With OLED display, it’s easy to select the IC type, RGB sequence, etc. Built-in 16 changing modes, would be worked as a single SPI controller independently.
An additional function in DMX-SPI-202: connect to the DMX console, 6 times of the LED lights can be controlled and the max. 1024 pixel can be controlled by 1pcs DMX-SPI-202 via this virtual pixel house function.

Input voltage: 5~24Vdc
Power consumption: 1W
Input signal: DMX512/RDM
Output signal: SPI(TTL)
Changing mode: 16
Control quantity: 170 pixels(510CH)
Virtual pixel:1-6 times, Max 1024 pixel
Working temp.:-30°C~55°C
Dimensions:L175×W44×H30(mm)
Package size:L178×W48×H33(mm)
Weight(G.W.):140g

Compatible IC´s

Two cable Data CLK

APA102, D705, GS8206, LPD1101,LPD6803,
LPD8803, LPD8806, P9813, UCS6909, UCS6912,
WS2801, WS2803

Single cable Data

APA104, KL592D, SK6812, SM16703, TLS3001,
TLS3002,TM1803 TM1804 TM1809 TM1812
TM1914, TM1914A, UCS1903, UCS1909, UCS1912,
UCS2903, UCS2909, UCS2912, WS2811, WS2812

Se datablad for ytterligere informasjon og spesifikasjoner.
