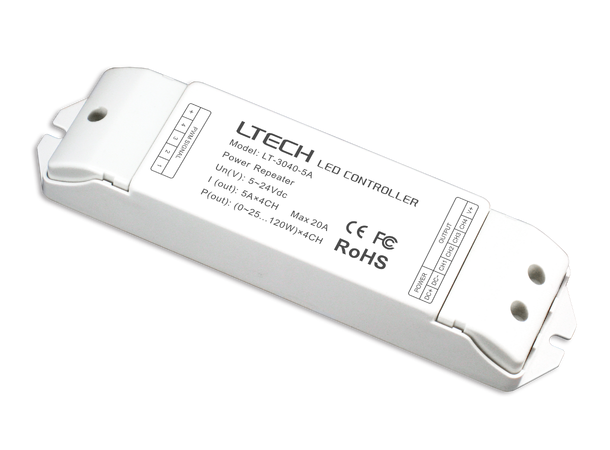

LED Power Repeater is suitable for all of our company's power-output style controllers' power expansion, it accepts PWM control, the control quantity of LED lights would be twice as much by adding one more power repeater, unlimited quantity of power repeater to be connected theoretically.
Signal input and output of LED power repeater have security protection function with photoelectricity isolation of 3KV.

Technical specifications:

Input Signal: PWM (200Hz~2000Hz)
Input Voltage: 5~24Vdc
Max Current Load: 5A × 4CH
Max. 20A Max Power Load: (0~25...120W) × 4CH     Max. 480W
Working Temperature: -30°C ~55°C
Dimensions: L175×W44×H30(mm)
Package Size: L178×W48×H33(mm)
Weight (G.W.): 145g

For øvrige tekniske spesifikasjoner se datablad under lenker & dokumenter
