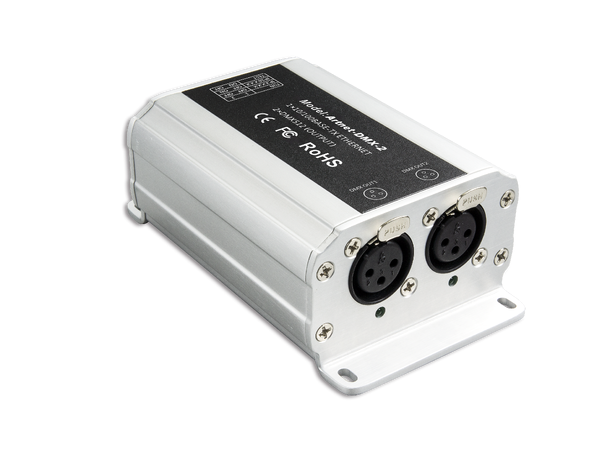

Artnet-DMX converter is the Ethernet Control System based on the Artnet protocol, used to convert the Artnet network data package into DMX512 data, adopting high-speed ARM processor, stable and reliable working. Following Artnet standard protocol, it supports RJ45 network interface and standard DMX512 output interface.

• Power input:12Vdc (with a power adapter)
• Network Connection: RJ45
• Input signal: Artnet/DMX512
• Isolation Ethernet Port: Transformer isolation
• Output signal: DMX512/Artnet
• DMX channels: 512 x 2 channels
• Working temperature: -30~65°C
• Dimension: L120×W73×H45mm
• Current: 30mA@12Vdc
• Package: 198×w78×h50mm
• IP: Indoor use only
• Weight (G.W): 360g
• DMX Output Connection: 3-pin XLR
