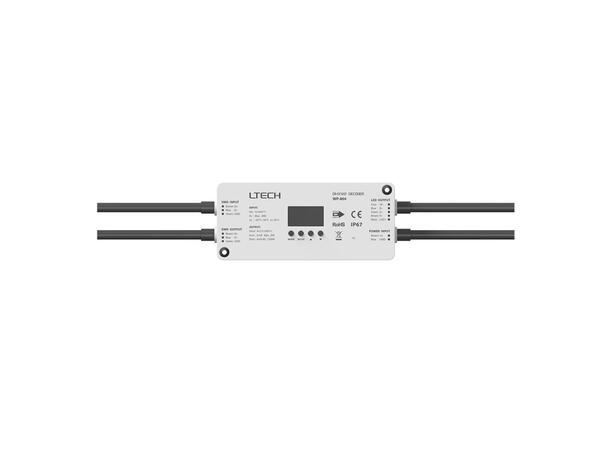

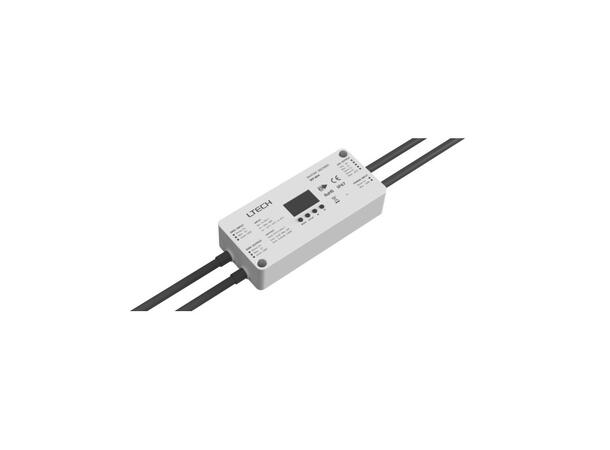

LTECH WP-804-CV DMX/RDM Decoder, IP67

WP-804 is a waterproof decoder with IP67 rating, suitable for outdoor and damp environments which uses the RDM protocol and supports DMX512/RDM signal bi-directional communication.
The RDM protocol enables the remote management such as reading/ writing DMX address (For RDM functions the DMX master must be RDM compliant).
WP-804 has 4 channel output with max. 5A output for each channel.
It can be used to control DIM,CT, RGB, RGBW constant voltage lights and achieve 0-100% dimming or various lighting effects. WP-804 can be operated in DMX mode or in customized mode.
It is easy to set address via digital display and buttons.

*When more than 32 DMX decoders are connected, DMX signal amplifiers are needed and signal amplification should not be more than 5 times continuously.
If you need to modify the parameter settings of connected DMX/RDM decoders that exceed 32, you can add 1 RDM signal amplifier or you can add 1-5 DMX signal amplifiers after completing the parameter settings.

*If the recoil effect occurs because of long signal line or poor quality wires, please try to connect a 0.25W 90-120O  terminal resistor at the end of each line.
