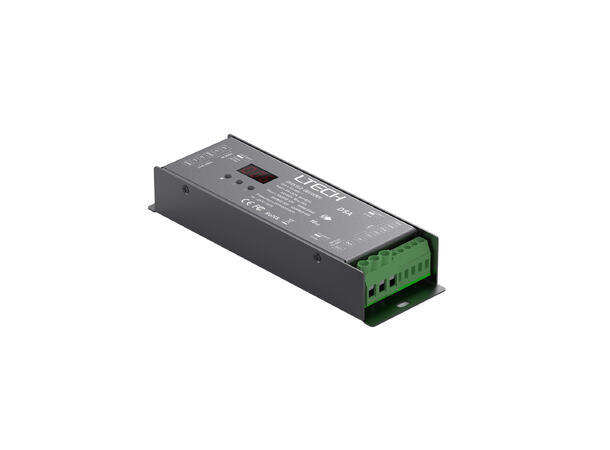

LTECH LED CV Driver DMX/RDM 3x8A/4x6A/5x5A, 12 - 48VDC, 0 - 1152W

LTECH LED CV Driver DMX/RDM

3x8A/4x6A/5x5A, 12 - 48VDC, 0 - 1152W

Varenr: 182691
Alt. varenr: D5A
667,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om å bli kunde her.
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
  • Constant Voltage 5 Channel DMX/RDM Decoder
  • Standard DMX/RDM interfaces; Set addresses via the digital display and buttons.
  • RDM protocol; Browse parameters and change DMX addresses via a RDM master or via the mobile APP .
  • DMX mode and customized mode can be switched.
  • PWM frequency options: 300/600/1200/1500/1800/2400/3600/7200/10800/14400/18000Hz.
  • 16bit (65536 levels)/8bit (256 levels) gray scale optional.
  • Two dimming mode options: standard and smooth dimming.
  • Set 1/2/3/4 DMX channel output.
  • Provide 10 lighting effects, 8 speed levels of dynamic modes, and 255 brightness levels.
  • Set screen timeout, LCD screen always on, and screen turning off after 30s of inactivity.
  • Short circuit, over-temperature, over-current protection and auto recovery.
  • D4A has green terminal DMX interfaces, D4B has RJ45 DMX interfaces.
