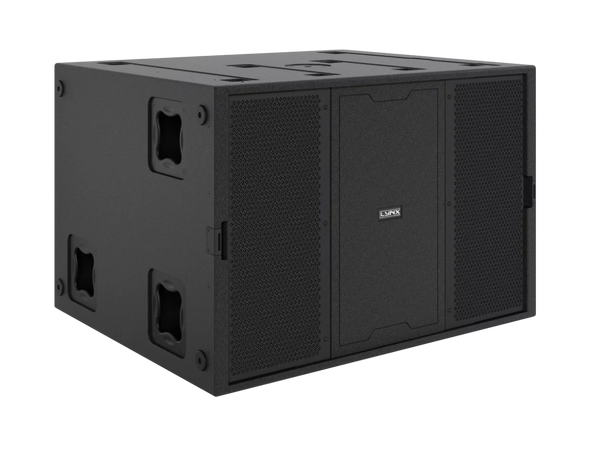

CPS-18S is a compact & extremely powerful, self-powered (3000W Class-D with PFC), DSP integrated subwoofer unit in 6th order band pass configuration. 18" (4" voice coil). Max SPL 138 dB.
- Extraordinary power-to-size ratio
- Integrated Digital Processing
- 18" neodymium transducer
- Integrated Digital Processor (64 bit / 96KHz)
- FIR linear phase filtering
- Ergonomic design in premium birch plywood & finished in polyurea
- Band pass configuration
- 2.8" IPS display with multifunction joystick control
Technical Data
|
Components |
|
LF: |
1 x 18" (4" QUATTRO in/out copper voice coil), waterproof cone with treatment for both sides |
|
Frequency range |
35 Hz - 100 Hz (-6dB) |
|
Coverage |
QUASI omnidirectional |
|
Max SPL |
132 dB / 138 dB |
|
Power amplifier |
3000 W Class D with switching power supply & PFC |
|
Processing |
Internal Lynx Processor DSPB-FL.
96 KHz / 64 bit double-precision, DSP with FIR filter linear phase
High performance 32 bit 96 KHz AD/DA converters 120 dB |
|
Configuration |
6th Order Band Pass Subwoofer |
|
Control |
User control interface with 2.8" IPS screen and multifunction joystick controller |
|
Control connections |
USB (DSP programming) / Dual Ethernet port |
|
Input |
BAL/UNBAL XLR connectors analog input
AES/EBU digital input optional |
|
Nominal voltage |
100 - 240V AC @ 50-60 Hz |
|
Operating voltage |
85 - 264V AC |
|
AC Connectors |
16A Neutrik powerCON TRUE1 TOP with looping output |
|
Finish |
Polyurea coating, high grade resistant paint |
|
Material |
15 mm Premium birch plywood |
|
Dimensions |
600 x 900 x 750 mm (H x W x D) |
|
Weight |
62 Kg (136.6 lbs) |
