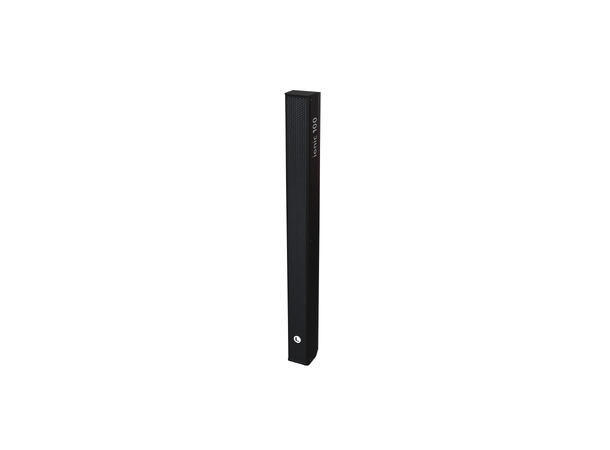

The Ionic-100/OD is a passive column speaker part of the Ionic series. The Ionic columns are compact, modular and powerful and the complete series includes two columns & two subwoofers. The Ionic-100 uses 12 x 3? (0.75? voice coil) neodymium transducers offering a coverage of 15º +/-5º V x 100º H and 121dB SPL.
Weight has been left as low as possible providing easy set ups in fixed installation as well as easy transport for portable applications.
The Ionic-100/OD is the ideal column speaker for outdoor installations. The cabinets receive the following treatment so that they can be installed in outside locations: micro perforated aluminium grill with special polyester protection against water, tropicalized speaker treatment with special latex covering and double cabinet sealing.
The Ionic-100/OD is powered from the subwoofer units which include a Digital Signal Processor offering different presets to cover a wide range of sound applications.
Technical Data
Components
|
12 x 3? speaker with 0.75? voice coil
|
| Frequency Range |
150 Hz – 20 KHz (-10dB) |
Frequency Response
|
180 Hz – 18 KHz (± 3dB)
|
| Sensitivity |
96 dB (1W@1m) |
Max SPL
|
121 dB – 127 dB Peak
|
| Coverage |
15º ± 5º V x 100º H |
Power
|
300 W (600 W program, 1200 W peak)
|
| Nominal Impedance |
8 O |
Connectors
|
2 x Neutrik Speakon NL4MP
|
| Finish |
Epoxy paint / bespoke pattern |
Material
|
1.5 mm stainless steel
|
| Dimensions |
1000 x 89 x 117 mm (H x W x D) |
Weight
|
13 Kg (29 lbs)
|
